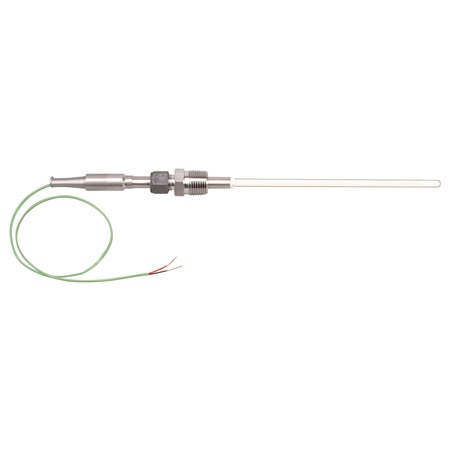

OMEGA SAT-TJ36-ST4-30-12 High Temp Thermocouple with Ceramic Sheath and Lead Wires (Thermocouple, S, 1650 °C, Extreme Temperature Probe)
Manufacturer: OMEGA Model: SAT-TJ36-ST4-30-12 - Contact
Wire Type: Solid
Insulation: Fiberglass
Probe Type: Rugged Transition Joint High-Temperature Thermocouple Probe
Wire Gauge: 30 AWG
Cable Length: 40 in
Probe Length: 12 in
probe-length: 12 in
Junction Type: Ungrounded
Probe Diameter: 0.25 in
Insulation Note: 1m (40") 24 AWG (0.020"); Solid Braided Fiberglass; Insulated Lead Wire
Number of Wires: 2
Sheath Material: Ceramic
Thermocouple Type: S
Alloy Material (+): Platinum - 10% Rhodium
Alloy Material (-): Platinum
Color Code Standard: ANSI
Electrical Connection: Stripped Leads
electrical-connection: Stripped Leads
Process Connection Type: NPT Male
Temperature Probe Style: Extreme Temperature Probe
Temperature Sensor Type: Thermocouple
Process Temperature, Max: 1650 °C
Process Temperature, Min: 0 °C
