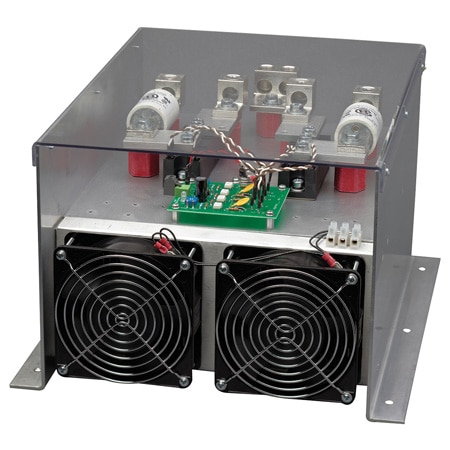

OMEGA SCR19P-H-12-250 SCR Power Controllers or Electrical Resistance Heaters 250 A Max
Manufacturer: OMEGA Model: SCR19P-H-12-250 - Contact
Weight: 6.4 kg
Cooling: Fan cooled, requires 120 Vac control voltage
Frequency: 50 to 60 Hz
Isolation: 2500 Vac
Device Load: Resistive
Current Output: 250 A
Supply Voltage: 120 Vac
Switching Type: Phase-Angle Firing
Voltage Rating: 120 Vac, 1-Phase, 1-Leg control
Startup Profile: None
Number of Phases: 1
Input Control Signal: 4 to 20 mA
Display and Indications: Open SCR, Shorted
Over-Voltage Protection: Inherent built-in immunity
Operating Temperature, Max: 50 °C
Operating Temperature, Min: 0 °C
