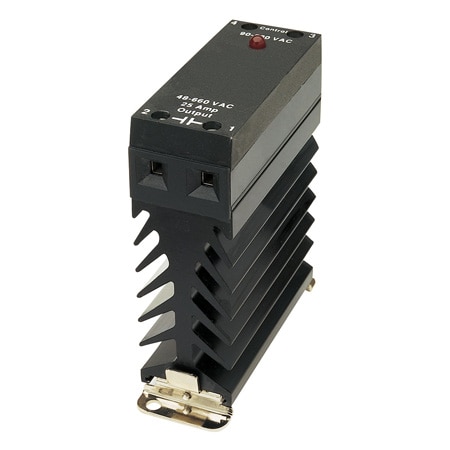

OMEGA SSRDIN660AC25 Single-Phase SSR Vdc & Vac Input/ Vac Output. DIN Rail/Panel Mount (24 mA)

Weight: 600 g

Frequency: 40 to 63 Hz

Form factor: 3-phase 90 mm DIN Rail

Power Cycle: Turn-On Time: 20 ms; Turn-Off Time: 30 ms

Current, Min: 100 mArms

Voltage, Max: 1100 V

Control Output: SCR

Current Output: 25 A

Voltage Output: 48 to 600 Vac

Dropout Voltage: 10 Vac

Leakage Current: 250 µArms

Wire Gauge Note: Input Strandard Wire Gauge: None; Input Solid Wire Gauge: None; Output Stranded Wire Gauge: 16 to 8 AWG; Output Solid Wire Gauge: 16 to 10 AWG

Housing Material: UL 940VD (self-extinguishing)

Input Resistance: Current Regulated

Number of Phases: 1

Signal fail-safe: 500 Vµs

Thermal Sensitivity: 1040

Input Control Signal: 100 to 280 Vac

Leakage Current Note: Off-State Leakage µArms (@ Max Line Voltage and Ta = 25ºC)@ 48 to 600 Vac

Surge Current Rating: 1 Cycle, Max: 500 A; 1 s, Max: 100 A

Operating Voltage, Min: 1.35 V

Isolated Analog Voltage: 4000 Vrms

Measurement Current, Max: 24 mA

Measurement Current, Min: 19 mA

Storage Temperature, Max: 100 °C

Storage Temperature, Min: -40 °C

Operating Temperature, Max: 80 °C

Operating Temperature, Min: -20 °C

Input-to-Output Capacitance: 8 pF

Input/Output-to-Ground Isolation: 4000 Vrms
