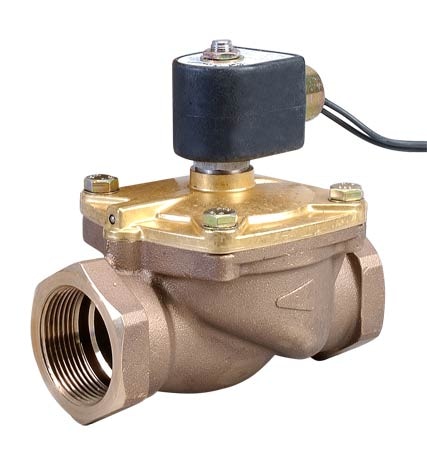

OMEGA SV287 2-Way, NC, Pilot Operated, Brass, NEMA-4 Solenoid Valves (38.6 gal/min, 2 in, NPT Male, 1 9/16 in, Pilot Operated, Normally Closed)

Mounting: Pipe mounting, any direction

Cv Factor: 38.6 gal/min

Materials: Brass, Nitrile Rubber

Coil Power: 10 W

Media Type: N/A

Valve Type: Pilot Operated

Orifice Size: 1 9/16 in

Supply Voltage: 120 Vac

Valve Position: Normally Closed

Static Pressure: 5 times max psid

Enclosure Ratings: IP65, NEMA Type 4

Materials, Wetted: Brass, Buna-N (NBR), Copper, Stainless Steel

Supply Power Note: 10 W, 120 Vac, Class F

Open Response Time: 0.25 to 0.45 s

Close Response Time: 1.5 to 9.5 s

Media Compatibility: Water

Additional Features 1: Slow Closing

Operating Pressure, Max: 230 psi

Operating Pressure, Min: 5 psi

Process Connection Size: 2 in

Process Connection Type: NPT Male

Process Temperature, Max: 85 °C

Operating Temperature, Max: 50 °C

Operating Temperature, Min: -9 °C
