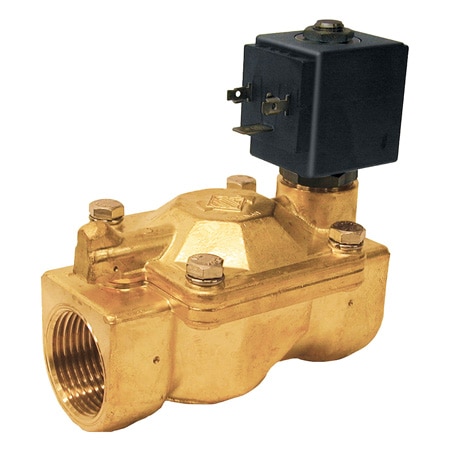

Mounting: Any (preferably with solenoid system upright)
Cv Factor: 28 gal/min
Materials: Brass, FKM, Stainless Steel 300, Stainless Steel 400, Copper
Coil Power: 8 W
Duty Cycle: 100%
Media Type: N/A
Valve Type: Direct Lift
Cycling Rate: 10 to 50 cpm
Orifice Size: 1 3/8 in
Supply Voltage: 120 Vac
Valve Position: Normally Closed
Materials, Wetted: Brass, Copper, FKM, Stainless Steel
Voltage Tolerance: ±10%
Open Response Time: 200 to 500 ms
Close Response Time: 100 to 4000 ms
Media Compatibility: Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
Coil Molding Material: Black Polyester (Class F): SV8COIL-115AC, SV8COIL-24DC/60HZ, SV8COIL-220AC Black Polyamide (Class F): SV8COIL-12DC, SV8COIL-24DC, All 12 Watt coils Black Polyphenylensulphide (Class H): SV8COIL-115/60HZ Black Epoxy Resin (Class H):All 14 watt coils
Operating Pressure Note: AC 150 psi, DC 150 psi
Operating Pressure, Max: 150 psi
Operating Pressure, Min: 2 psi
Process Connection Size: 1 1/4 in
Process Connection Type: NPT Male
Process Temperature, Max: 137 °C
Process Temperature, Min: -10 °C
