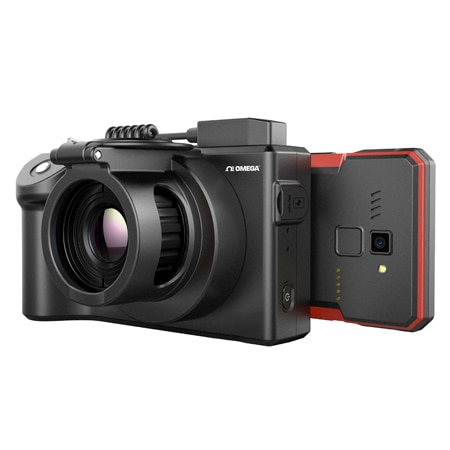

OMEGA TI-126 -20 °C to 650 °C Temperature Thermal Imager With Smartphone (28°H x21°V, 384 x 288 pixels, 650 °C)

Zoom: 10X continuous digital zoom

Focus: Manual

Width: 93.5 mm

Height: 145 mm

Length: 118 mm

Weight: 615 g

Isotherm: Above/ Below threshold

Palettes: 15

Weight Note: ~615 g

Applications: Laboratories and Scientific, Materials and Surfaces

Battery life: up to 10 hr

Display Mode: Full screen thermal image

File Formats: JPEG

Accuracy Note: ± 2°C or ± 2% whichever is greater@ Environment Temperature l0°C~35 °C

Configuration: • Thermal imaging camera (built-in battery) • Standard infrared lens • Lens protective case • Power adapter • USB to micro USB OTG cable (left angle/ right angle) • USB to Micro USB OTG cable • USB to Micro USB-C OTG cable • USB to USB cable • Hand wrist strap • Getting started manual (with warranty card) • Calibration certificate • Take fully-radiometric Thermal Video Stream on PC: Support 1 TB in Software • Take fully-radiometric Thermal Video Stream on Smartphone: Support, user-defined frame rate (up to 5 fps) or frame interval, up to 1,000 frames per video stream on smartphone • Thermal Image Analysis on Smartphone: Support on site Analysis • Thermal Video Analysis on Smartphone: Support on site Analysis • Automatic Capture of High, Low and Average Temperature: Support, on smartphone and in software Support

Detector Type: Focal Plane Array (FPA) uncooled microbolometer

Field of view: 28°H x21°V

Image Tagging: Thermal image can be automatically labelled by scanning QR code or barcode

Palettes Note: 15 palette options (Gray White, Gray Red, Iron Red, Rainbow, etc.)

Data Interface: USB

Recording time: ~57 Days

Charging System: AC power adapter

Emissivity, Max: 1

Emissivity, Min: 0,1

Tripod Mounting: UNC1/4'' - 20

Image Annotation: Voice / Text Memos

Display Mode Note: Full screen thermal image, customer size/transparency/moveable dual vision fusion picture-in-picture (PIP)

Enclosure Ratings: IP40

File Formats Note: Standard JPEG, including raw temperature data, radiometric

Focal Length, Min: 0.1 m

Noise Calibration: Automatic noise calibration FFC / Manual noise calibration FFC

Palette Switching: Tap palette icon

Software Packages: Tl Analyzer,professional computer analysis software

Temperature Alarm: User-defined threshold with audible and visual alarm

Display Resolution: none

Image Saving Modes: Single thermal image,Thermal & digital mix image

Spatial Resolution: 0.78 mRad

Correction Settings: Emissivity, reflected background temperature, relative humidity, ambient temperature, measuring distance, transmission

Data Interface Note: Transfer fully-radiometric thermal video stream with all original temperature data of each pixel to PC, connect with mobile devices supporting OTG (On-The-Go host)

Infrared Resolution: 384 x 288 pixels

Thermal Sensitivity: <0.05 °C

Application Software: Tl Link,smartphone App

ROI Measurement Modes: 12 moveable spots

Spectral Response, Max: 14 µm

Spectral Response, Min: 8 µm

Object Temperature, Max: 650 °C

Object Temperature, Min: -20 °C

Spatial Resolution Note: 0.78mRad, D:S 1282:1 (Std. Lens)

Storage Temperature, Max: 50 °C

Storage Temperature, Min: -20 °C

Thermal Sensitivity Note: <0.05°C @ 30°C

Operating Temperature, Max: 50 °C

Operating Temperature, Min: -20 °C

ROI Measurement Modes Note: 12 moveable spots 12 moveable area boxes (min/max) 3 lines (min/max) Emissivity set for each ROI

Regional Emissivity Adjustment: Support, on smartphone and in software

Continuous Online Monitoring in Software: 1TB

Continuous Online Monitoring on Smart phone: 1000 Frames
