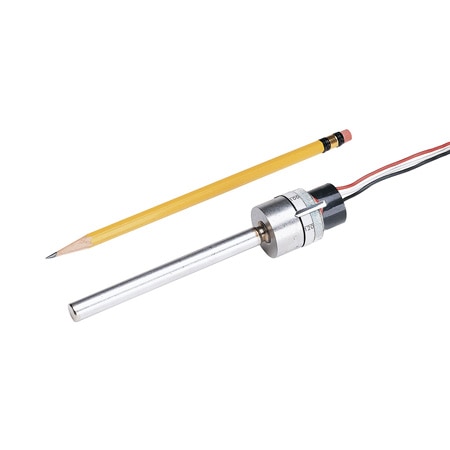

OMEGA TSW-15 Adjustable Stainless Steel Temperature Switches (SPDT NO/NC, Selectable)

Weight: 113 g

Wire Gauge: 20 AWG

Switch Type: SPDT NO/NC, Selectable

Cable Length: 12 in

Probe Length: 146.1 mm

Pressure, Max: 68.9 bar

Repeatability: ± 0.7°C

Setpoint Type: Adjustable

Probe Diameter: 9.7 mm

Sensor Material: 316 Stainless steel

Housing Material: Zinc alloy chromate finish

Electrical Rating: 5 A @ 250 Vac/28 Vdc

Switch Activation: Rising

Pressure Rating Note: 68.9 bar @425 °C

Electrical Connection: Pigtail Leads

Switch Cycle Rate, Max: 20 cycles/min

Temperature Sensor Type: Capillary Bulb

Setpoint Temperature, Max: -5 °C

Setpoint Temperature, Min: -45 °C

Operating Temperature, Max: 105 °C

Operating Temperature, Min: -55 °C
