Height: 33 mm
Weight: 50 g
Accuracy: ± 0.1 %
Diameter: 44 mm
Linearity: <0.08%
Span, Min: 600°C
Input Type: Thermocouple
Calibration: 2 “Zero” DIP switches, 3 “Span” DIP switches and 2 fine tuning trimmers
Output Load: (Vsupply - 10)/0.02

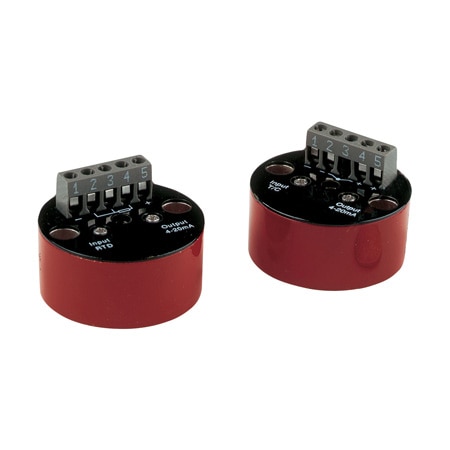

Sensor Type: Transmitter
Probe Length: 0 mm
Accuracy Note: 0.1% of span
Mounting Note: 5 mm ID suitable for 8-32 screw
Output Detail: 4 to 20 mA, 28 mA limited
Humidity Range: 5 to 95% RH, non-condensing
Setup Controls: 2 “Zero” DIP switches, 3 “Span” DIP switches and 2 fine tuning trimmers
Supply Voltage: 10 to 36 Vdc
Dimensions Note: 33 H x 44 mm diameter including the terminal block
Sheath Material: N/A
Housing Material: Diecast zinc alloy
Electrical Output: 4 to 20 mA
Supply Power Note: 10 to 36 Vdc (24 Vdc recommended)
Supply Power Type: DC
Thermocouple Type: R,S
Supply Power Effects: <0.001%/1V
Electrical Connection: Screw Terminal
Temperature Stability: <0.01% of span/1°C
Temperature Input Range: R: 0 to 1750 °C;S: 0 to 1750 °C
Cold Junction Compensation: ±0.9°C (±1.6°F) typical (3°C [5.4°F] for R and S) for 0 to 60°C
Operating Temperature, Max: 70 °C
Operating Temperature, Min: -20 °C
Mounting Screw Hole Diameter: 5 mm
