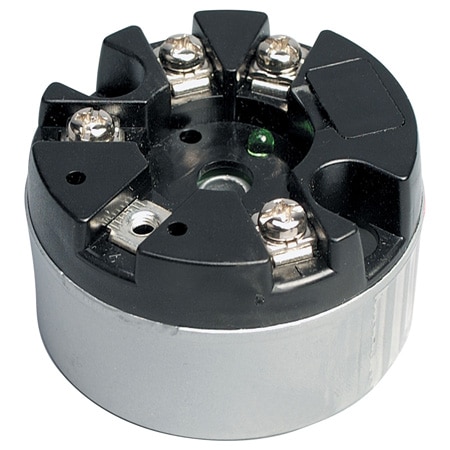

OMEGA TX31-J Head Mount Thermocouple Transmitter w/ Process Output (Thermocouple, J, 0 to 600°C)

Height: 27 mm

Weight: 65 g

Diameter: 45 mm

Isolation: Galvanic, 1000 Vrms Input/output , continuous

Linearity: ±0.01%

Input Type: Thermocouple

RFI Effect: < ±10% of span (5W, 470 MHz)

Wire Gauge: 22 to 12 AWG

Calibration: Trimpot/Switch

Output Load: 50 x (loop power - 12) Ω

Sensor Type: Transmitter

Probe Length: 0 mm

Output Detail: 4 to 20 mA; Upscale < 26 mA, Downscale <3.8 mA

Repeatability: ±0.01%

Response Time: 200 ms

Humidity Range: 5 to 85% RH non condensing

Setup Controls: Trimpot/Switch

Supply Voltage: 12 to 32 Vdc

Sheath Material: N/A

Housing Material: Aluminum, Epoxy, Polycarbonate

Electrical Output: 4 to 20 mA

Supply Power Note: 12 to 32 Vdc; Reverse polarity protected

Supply Power Type: DC

Thermocouple Type: J

Repeatability Note: ±0.1% of voltage input span

Supply Power Effects: ±0.01%/V

Electrical Connection: Screw Terminal

Temperature Coefficient: ±0.02% /°C

Temperature Input Range: 0 to 600°C

Cold Junction Compensation: ±2°C

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -20 °C

Zero Setting Adjustable Range: 0.05
