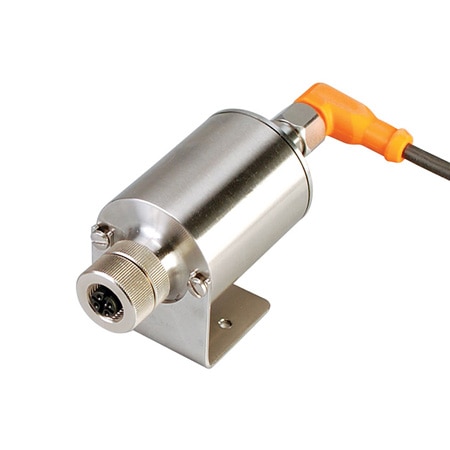

OMEGA TX94A-4-SS-M12F-1 RTD Temperature Transmitter - 316 Stainless Steel Construction (RTD (Pt100), 4 to 20 mA)

Accuracy: ± 0.1 %

Diameter: 38 mm

Mounting: Mounting Bracket

Approvals: CE

Bandwidth: 3 Hz (-3 dB)

Linearity: ± 0.1%

Materials: 316 Stainless Steel

Hysteresis: ± 0.1%

Input Type: RTD (Pt100)

Input Range: -18 to 260 °C

Supply Power: 8 to 35 Vdc

Output Signal: Current

Repeatability: ± 0.1%

Number of Wires: 2

Span Adjustment: ± 25 %

Wire Code Option: 1

Electrical Output: 4 to 20 mA

Enclosure Ratings: IP67, NEMA 4

Supply Power Type: DC

Loop Resistance, Max: (Vs - 8V) / 0.020 A

Electrical Connection: M12 4 pin Male

Temperature Coefficient: α = 0.00385 curve

Operating Temperature, Max: 85 °C

Operating Temperature, Min: -40 °C

Input Electrical Connection: M12 4 pin Female

Zero Setting Adjustable Range: ± 25%
