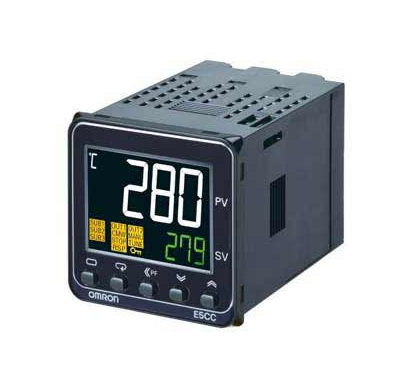

OMRON E5CC-QX2DBM-002 Digital Temperature Controller (24 VAC/DC; 48x48mm)
Manufacturer: OMRON Model: E5CC-QX2DBM-002 - Contact
Shape: DIN48 x 48
Terminal type: Push-In Plus Terminal Block
Input type: Thermocouple/Platinum resistance thermometer/Infrared Thermosensor/Analog input
Control output 1: Voltage output (for driving SSR)
Control output 2: None
Number of total auxiliary output: 2 point
Power supply voltage: 24 VAC (50/60 Hz); 24 VDC
Heater burnout /SSR failure detector: 1 point
Communications method: RS-485 (two-wire, half duplex)
