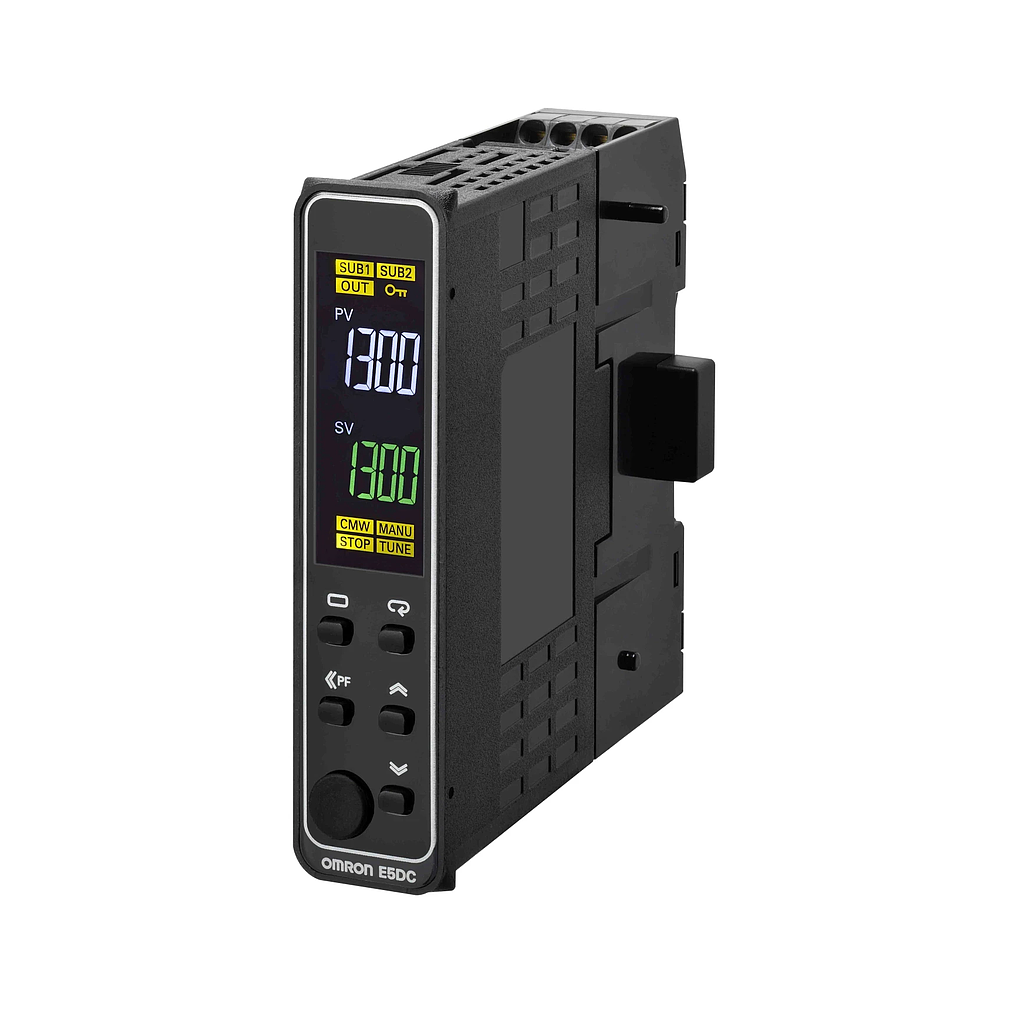

OMRON E5DC-QX0DBM-015 Digital Temperature Controller (24 VAC/DC)
Manufacturer: OMRON Model: E5DC-QX0DBM-015 - Contact
Type: E5DC
Power supply voltage: 24 VAC, 50/60 Hz; 24 VDC
Operating voltage range: 85% to 110% of rated supply voltage
Sensor input: Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II; Platinum resistance thermometer: Pt100 or JPt100
Control output: Output voltage 12 VDC ±20% (PNP), max. Load current: 21 mA, with short-circuit protection circuit
Input sampling period: 50 ms
Terminal: Push-In Plus Terminal Blocks
No. of auxiliary outputs: 0
Mounting Method: DIN track
Control method: ON/OFF control, 2-PID control with auto-tuning
Display Type: 11-segment digital displays and individual indicators
Degree of protection: Rear case: IP20, Terminals: IP00
Altitude: max 2.000 m
Ambient operating temperature: -10-55°C
Ambient operating humidity: 25-85 % RH
