Width: 1.35 mm
Height: 1 mm
Length: 2.2 mm
Unit Weight: 6.200 mg
Configuration: Dual Common Base and Collector

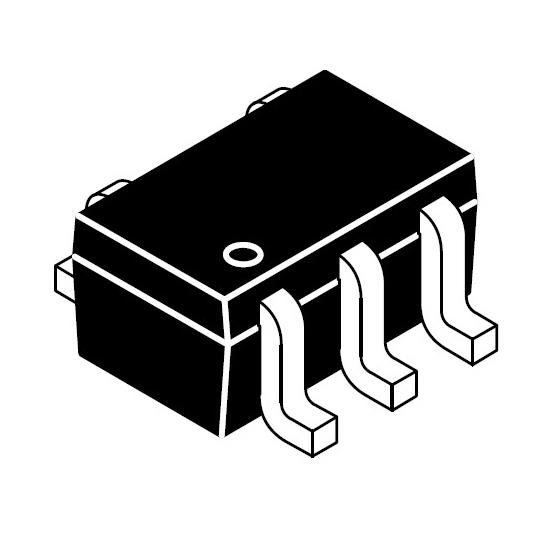

Mounting Style: SMD/SMT
Number of Channels: 2 Channel
Transistor Polarity: NPN, PNP
Pd - Power Dissipation: 150 mW
Typical Input Resistor: 47 kOhms
Typical Resistor Ratio: 1, 0.47
DC Current Gain hFE Max: 20
Peak DC Collector Current: 100 mA
Continuous Collector Current: 100 mA
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 65 C
DC Collector/Base Gain hfe Min: 80, 20
Collector- Emitter Voltage VCEO Max: 50 V
