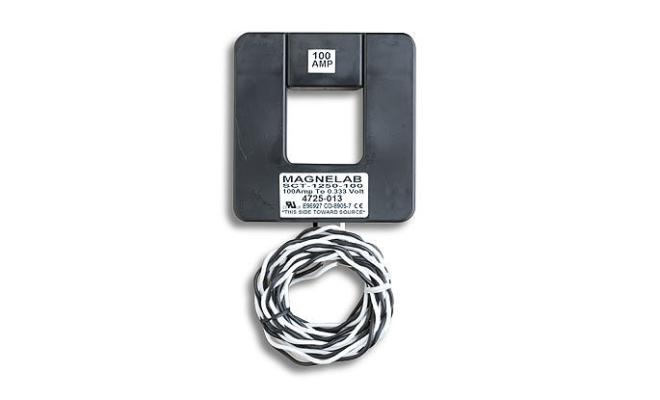

Onset T-MAG-SCT-100 100 AMP Split-core AC Current Transformer Sensor (0~100 Amp)

Manufacturer: Onset
Model: T-MAG-SCT-100
P/N: T-MAG-SCT-100
Contact
- Request a Quotation
Contact us for the best price

Myanmar: 09 266993007 / 09 266993008

Email: info@emin.com.mm

Specifications
Manufacturer Info

Rated input: from 0 Amp to 100 Amp

Output: 0.333 Volt AC at rated current

Operates: from 30 Hz to 1,000 Hz

Phase angle: < 2 degrees measured at 50% rated current

Linearity accuracy: ± 1%

8 ft. twisted-pair lead

Accuracy: at 10% to 130% of rated current

Custom output and other parameters are available

Width: 3.25 inches

Height: 3.35 inches

Thickness: 1.00 inches

Window: 1.25 inches

Details

A 100 Amp CT that mounts around a current carrying wire to measure AC amperage; provides accurate current measurement for many types of equipment, including variable frequency drives and switched power sources. For use with HOBO H22, U30, and RX3000 Series Data Loggers

Manual

Quality Engagement
Easy change and return
Delivery Avaliable
Favorable payment

Manufacturer:	Onset
Model:	T-MAG-SCT-100
P/N:	T-MAG-SCT-100

Onset T-MAG-SCT-100 100 AMP Split-core AC Current Transformer Sensor (0~100 Amp)
