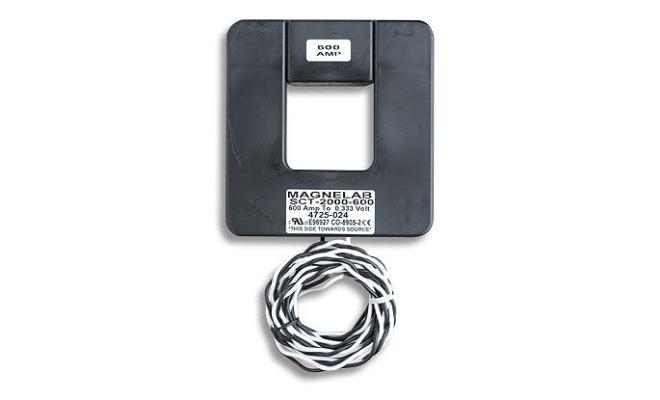

Onset T-MAG-SCT-600 600 AMP Split-core AC Current Transformer Sensor (60~600 Amp)
Manufacturer: Onset Model: T-MAG-SCT-600 P/N: T-MAG-SCT-600 - Contact
Rated input: from 60 Amp to 600 Amp
Output: 0.333 Volt AC at rated current
Operates: from 30 Hz to 1,000 Hz
Phase angle: < 2 degrees measured at 50% rated current
Linearity accuracy: ± 1%
8 ft. twisted-pair lead
Accuracy: at 10% to 130% of rated current
Custom output and other parameters are available
Width: 4.75 inches
Height: 5.00 inches
Thickness: 1.20 inches
Window: 2.00 inches
The Magnelab AC Current 600 Amp AC Current Transformer or CT (Magnelab part # SCT-2000-600) is mounted around a current carrying wire to measure AC Amperage. This CT provides 333mV output proportional to current and is used with the FlexSmart TRMS Module for True RMS measurement of sinusoidal and non-sinusoidal waveforms. The result is accurate current measurement for many types of equipment, including variable frequency drives and switched power sources. One or two CTs can be used with each FlexSmart TRMS Module. For use with HOBO H22, U30, and RX3000 Series Data Loggers
