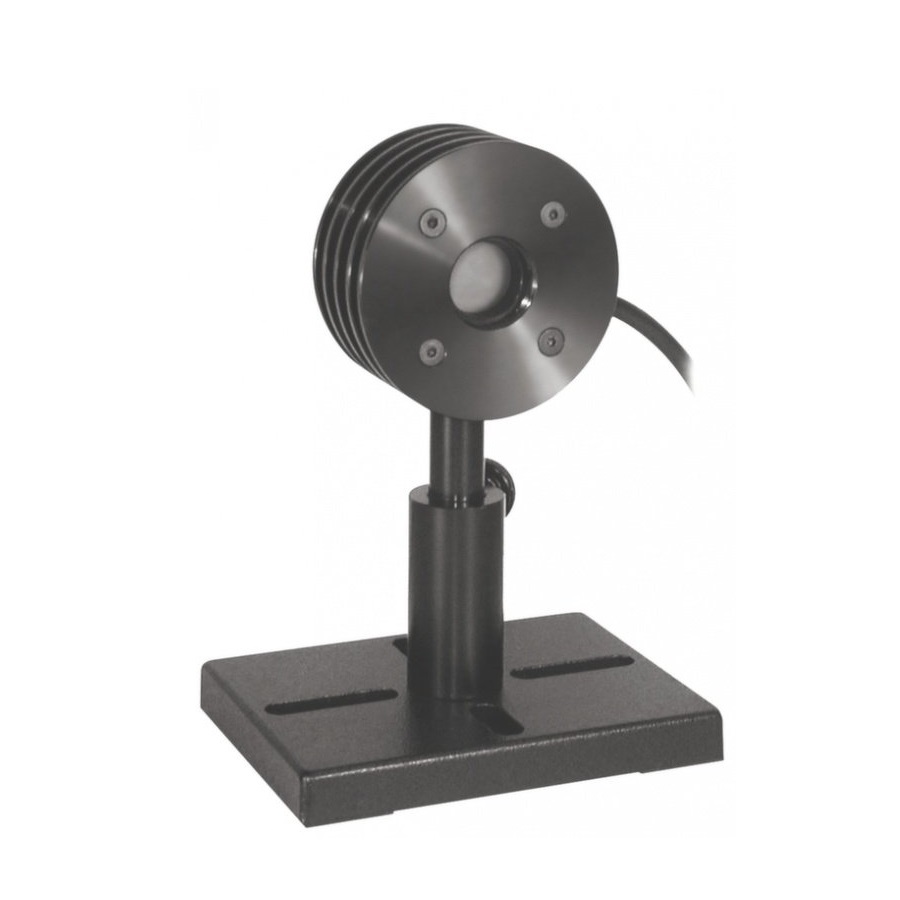

Ophir 10A-P Low Power Thermal Sensor (40mW-10W)
Manufacturer: Ophir Model: 10A-P P/N: 7Z02649 - Contact
Absorber Type: P type
Aperture: Ø16mm
Spectral Range: 0.15-8µm
Power Range: 40mW-10W
Energy Range: 10mJ-10J
Backscattered Power: N.A.
Dimensions: Ø60 W x 37 D (mm)
Max Pulse Energy: 10J
Max Average Power Density: 0.05kW/cm²
Response Time: 3.5 s
Max Energy Density (for <100ns): 1J/cm²
Max Energy Density (for 2ms): 1J/cm²
Max Average Power: 10W
BeamTrack Functions: N.A.
Compliance: CE, UKCA, China RoHS
