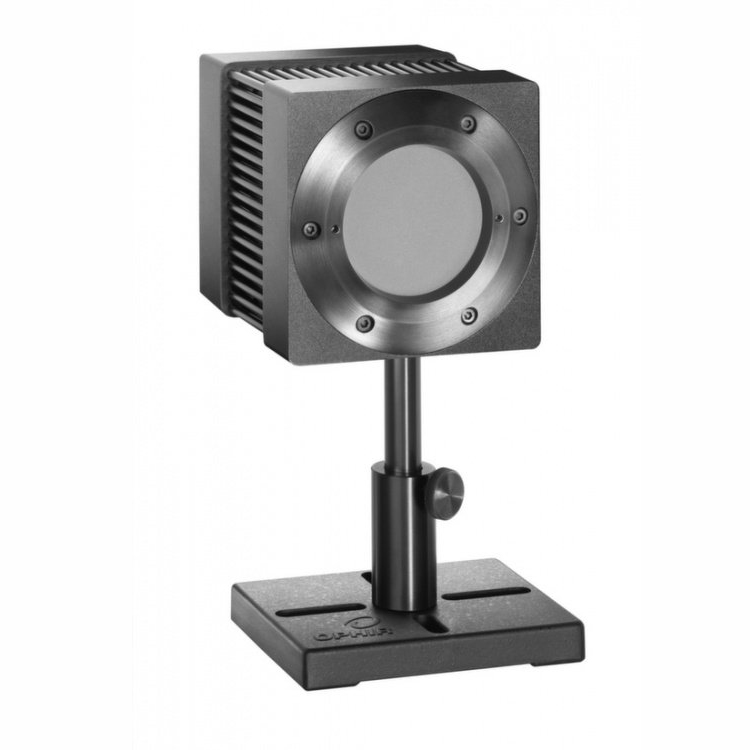

Ophir FL250A-BB-50 Medium-High Power Fan Cooled Thermal Sensor (150mW-250W)
Manufacturer: Ophir Model: FL250A-BB-50 P/N: 7Z02739 - Contact
Absorber Type: Broadband
Aperture: Ø50mm
Spectral Range: 0.19-20µm
Power Range: 150mW-250W
Energy Range: 80mJ-300J
Backscattered Power: N.A.
Dimensions: 90 L x 90 W x 105 D (mm)
Max Pulse Energy: 300J
Max Average Power Density: 10kW/cm²
Response Time: 2.5 s
Max Energy Density (for <100ns): 0.3J/cm²
Max Energy Density (for 2ms): 10J/cm²
Max Average Power: 250W
BeamTrack Functions: N.A.
Compliance: CE, UKCA, China RoHS
