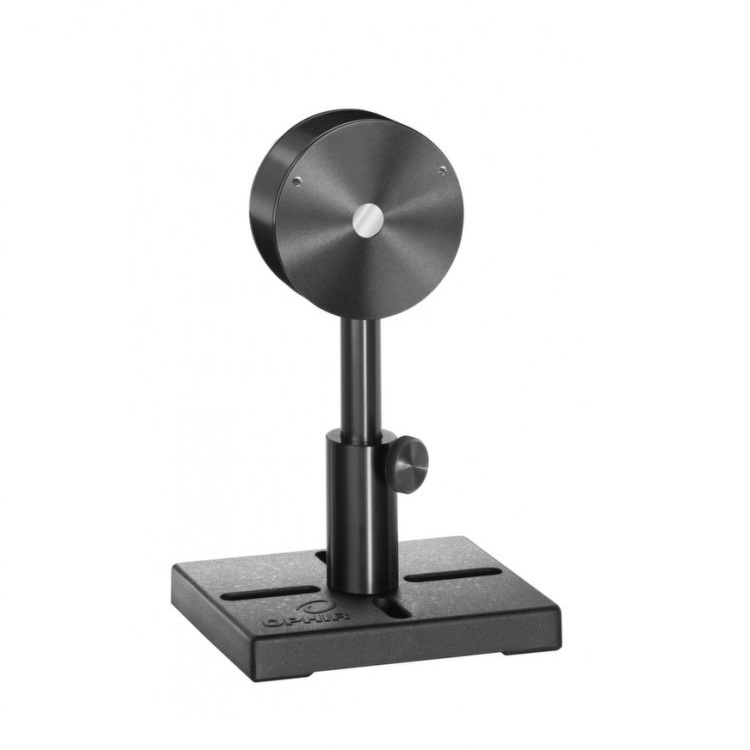

Ophir PD10-IR-C Photodiode Energy Sensors

Use: Infrared

Aperture: Ø5mm

Absorber Type: Ge photodiode

Spectral Range: 0.7 - 1.8 µm

Surface Reflectivity.: 30%

Calibration Uncertainty: ±5%

Energy Scales: 600nJ to 6nJ

Lowest Measurable Energy: 1nJ at 1550nm

Max Pulse Width: 0.005ms

Maximum Pulse Rate pps: 10kHz

Noise on Lowest Range: 0.1nJ

Damage Threshold: 0.1 J/cm2

Maximum Average Power: 6mW at 800nm

Maximum Average Power Density: 50W/cm2

Maximum Energy vs. Wavelength: 800-900nm; 600nJ

                                                       1000-1300nm; 200nJ

                                                       1300-1400nm; 170nJ

                                                       1480-1560nm; 150nJ

                                                       >1650nm; 600nJ

Fiber Adapters Available: ST, FC, SMA, SC

Weight: 0.25kg

Compliance: CE, UKCA, China RoHS
