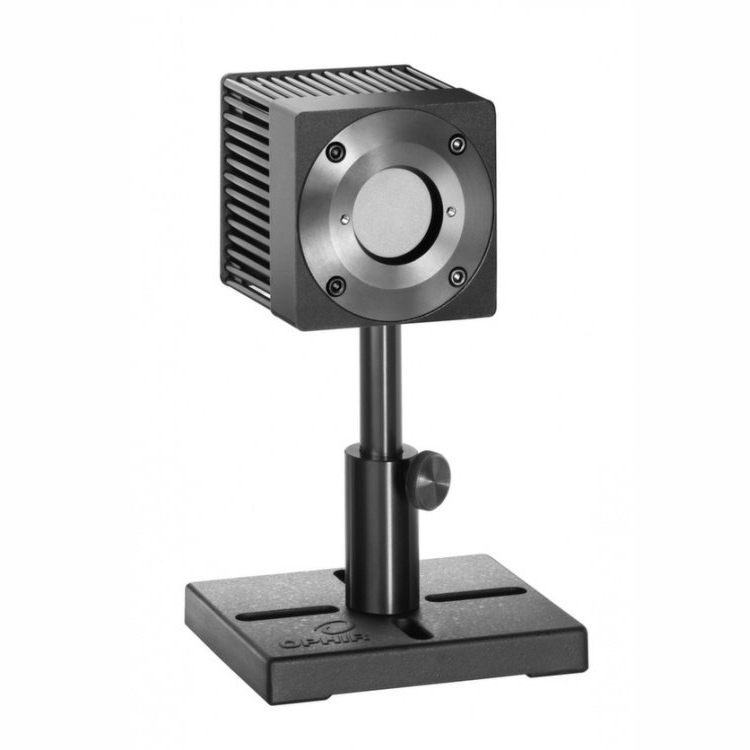

Ophir 50(150)A-BB-26-PPS BeamTrack - Power/Position/Size Thermal Sensor (40mW-150W)
Manufacturer: Ophir Model: 50(150)A-BB-26-PPS P/N: 7Z07900 - Contact
Absorber Type: Broadband
Aperture: Ø26mm
Spectral Range: 0.19-20µm
Power Range: 40mW-150W
Energy Range: 20mJ-100J
Backscattered Power: N.A.
Dimensions: 64 L x 64 W x 64 D (mm)
Max Pulse Energy: 100J
Max Average Power Density: 12kW/cm²
Response Time: 1.5 s
Max Energy Density (for <100ns): 0.3J/cm²
Max Energy Density (for 2ms): 10J/cm²
Max Average Power: 150W
BeamTrack Functions: Power/Energy/Position/Size
Compliance: CE, UKCA, China RoHS
