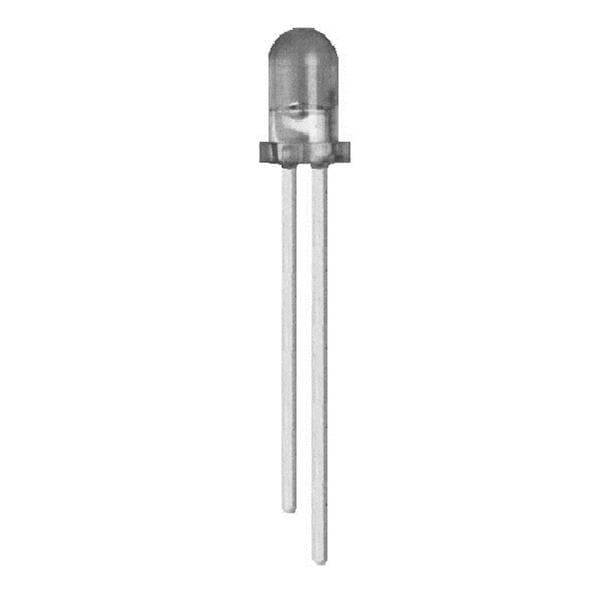

TT Electronics / Optek Technology OP265B IR Emitters (IR LEDs) Infrared 890nm
Manufacturer: TT Electronics / Optek Technology Model: OP265B - Contact
Width: 3.94 mm
Height: 5.72 mm
Length: 3.94 mm
Fall Time: 250 ns
Rise Time: 500 ns
Beam Angle: 18 deg
Lens Shape: Dome
Wavelength: 890 nm
Unit Weight: 233.750 mg
Power Rating: 100 mW
Mounting Style: Through Hole
Lens Dimensions: 3.05 mm x 3.05 mm x 4.83 mm
Radiant Intensity: 4.7 mW/cm2
Illumination Color: Infrared
If - Forward Current: 20 mA
Vf - Forward Voltage: 1.8 V
Vr - Reverse Voltage: 2 V
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
