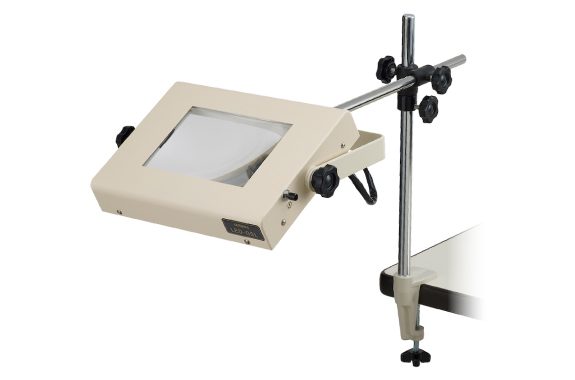

Otsuka LED-OSL-3 LED Illuminated mangifire (2x, 4x)

Type: long bar type

Lens:

Magnification: 2x, 4x

Allowable lens dimension (mm): 100×140

Lens Material: Optical glass

Working distance (mm): 2x/160, 4x/110

Lens Type: Fixed

Multi-coating Setting: Not available

Lighting:

Light source: White LEDs 2 pcs.

Wavelength: 400 nm

Input voltage: 100〜240V: 50/60 Hz: Plug Type A

Power consumption: 9W

Dimming Function: Not available

Body:

Product weight: 2X: 2.9kg / 4X: 3.9kg

Overall height (mm): 355

Head Dimensions (mm): 180X237

Virtical/Horizontal Bar(diameter/mm): ɸ16/ɸ13

Clamping width (mm): 15 to 60

AC adapter dimensions (mm): 64x50x27

LED-OSL-3 model is a flexible and easy-to-use product that can be fixed to a workbench or other location with a clamp attached to a pillar.

LED-OSL-3 reduces power consumption by 50% compared to the conventional fluorescent lamp type.

LED version of the light is achieved while maintaining the same level of illumination and diffusion as a fluorescent lamp.

square lens prevents distortion of the outer circumference of the lens that occurs with a round lens, making it possible to work for long periods of time.

ON/OFF switch is located on the head for improved operability.

 long horizontal bar and the pillar are arranged in the X and Y directions, and the long horizontal bar makes it possible to use it like a free arm, although the effect is limited.

 AC adapter is used as the power supply.

optional “OSL-PUL (power-up lens)” which increases the magnification from 2x to 4x is also available. Only the product with a 2x lens can be used.
