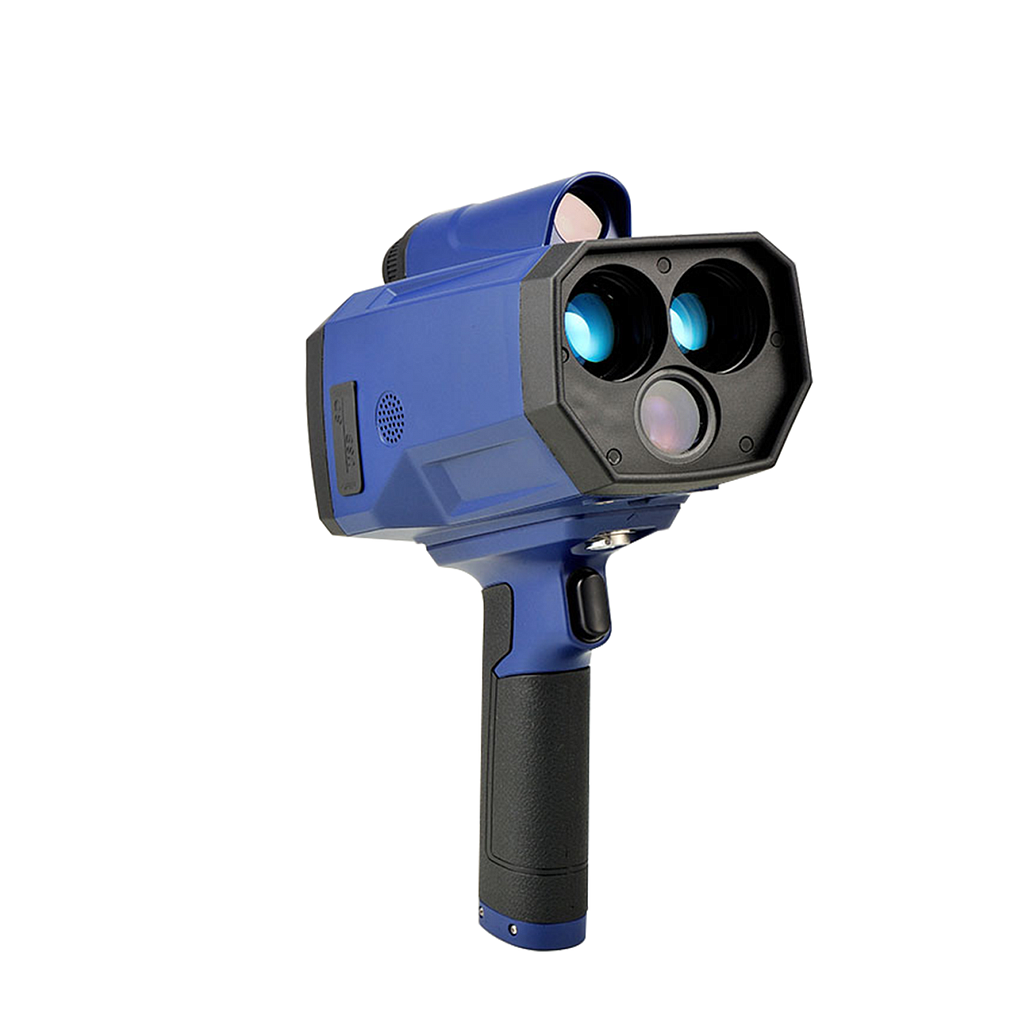

PACECAT Laser Speed Gun Laser Speed Gun With Camera (0 - 320km/h)

Parameters

Max Measurement Distance

Speed Measurement Mode: 600-700m

Distance Mode: 1200m

Min Measurement Distance

Speed Mode: no larger than 10m

Weather Mode: 60 m (Auto Software Identification）

Best Focus Distance: 70m (230 feet)

Distance Range

Hand-Held: 15 – 90 m (50 – 295 feet)

Tripod: 15 – 100 m(50 – 328 feet)

Speed Measurement Accuracy ±2 km/h; ±1 mile/h

Ranging Scope: 0 km/h to 320 km/h; 0 mile/h to 200 mile/h

Ranging Accuracy: ±30 cm; ± 12 inch

Display Resolution

Speed: 1km/h 1 mile/h

Distance: 1 m 1 feet

Speed Measurement Time: 0.33-0.67

Measurement Unit (Factory Default):

Speed: km/h; mile/h; m/s

Distance: m; feet; yard

Laser Wave Length: 905 nm

Laser Beam Divergence: 2.5 mrd

Human Eyes Safety: Class 3R

Mechanical Structure

Weight: 1.55kg

Size: 197*124*316 mm

Environment: IP65

Temperature Ranger

Operation: -10°C to +60° C (14°F to 140°F)

Charging: 0°C to +45°C (32°F to +113°F)

Storage: -20° C to +60°C (-4°F to 140°F)

I/O: RS232, USB 2.0

Hardware

Display: 4.3 inch (10.9 cm), 480×272 pixel, Colorful, Touch Screen

Camera: 2.0 pixels (1600×1200)

Camera Lens: 75mm, Fixed Focus

Power

Batteries: 7.4 v DC, Lithium polymer chargeable batteries, overcharge protection, up to 5-8 hrs of operation

Battery Charger: Charger:110 v ac to 240 v ac 50/60 Hz input

Vehicle Charger: No

Power Consumption: 5w

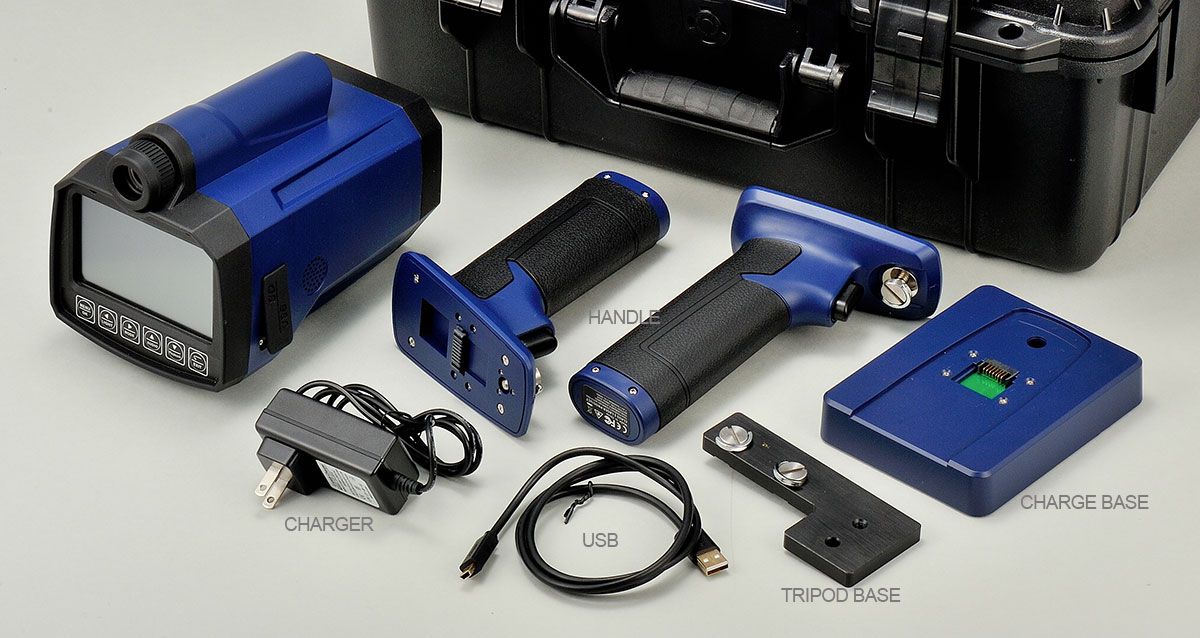

Accessories

Catalog
