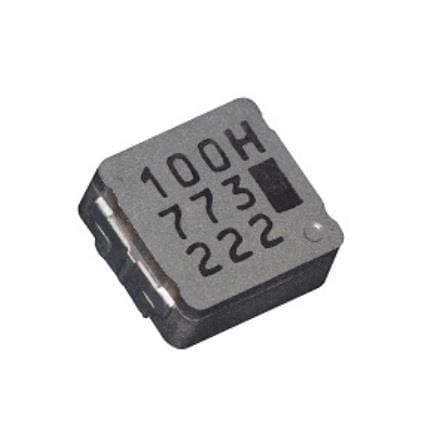

PANASONIC ETQ-P3M2R2HFP Power Choke Power Choke Coil SMD 5x5 2.2uH AEC-Q200
Manufacturer: PANASONIC Model: ETQ-P3M2R2HFP - Contact
Width: 5 mm
Height: 3 mm
Length: 5.5 mm
Shielding: Shielded
Tolerance: 20 %
Inductance: 2.2 uH
Application: Automotive
Termination: Standard
Core Material: Metal Composite
Qualification: AEC-Q200
Mounting Style: PCB Mount
Test Frequency: 100 kHz
Termination Style: SMD/SMT
Maximum DC Current: 6.3 A
Saturation Current: 9 A
Maximum DC Resistance: 21.45 mOhms
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 40 C
