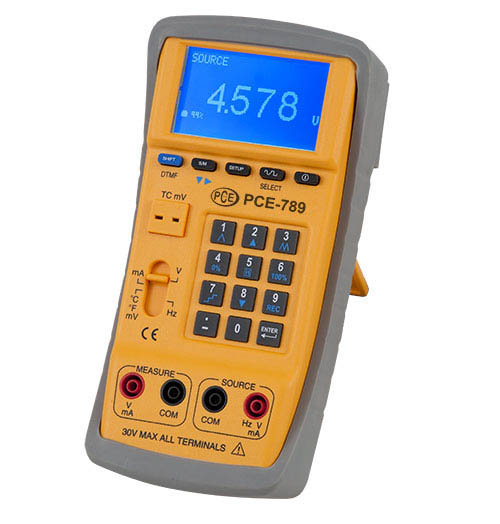

PCE 789 Multifunction Calibrator

  • Manufacturer:PCE
    Model: 789
    P/N: PCE-789
    Guarantee: 12 Month
  • Contact
    • Request a Quotation
  • Contact us for the best price

    Myanmar: 09 266993007

    Email: info@emin.com.mm

Technical Specifications

Magnitud

Range

Resolution

Accuracy

Generate / Simulate

Current
(no charge voltage >15 V)

-4 ... -0,005 mA

1 µA

± (0,03 % + 5 digits )

0,005 ... 4 mA

1 µA

± (0,03 % + 5 digits )

4 ... 20 mA

1 µA

± (0,03 % + 5 dgits )

20 ... 24 mA

1 µA

± (0,03 % + 5 digits )

Voltage
(max 1 mA)

-3 ... -0,005 V

1 mV

± (0,03 % + 5 digits )

0,005 V ... 10 V

1 mV

± (0,03 % + 5 digits )

10 V ... 15 V

1 mV

± (0,03 % + 5 digits )

-10 ... 70 mV

0,01 mV

0,05 mV

Termocouples
Types: K, J, E, T, R, S, N, L, U, B, C

according to type
(see use intructions)

0,1 °C

according to type
(see use intructions)

Frequency

0,3 ... 99,999 Hz

0,1 Hz

0,002 Hz

10,00 ... 999,99 Hz

0,1 Hz

0,02 Hz

1000,0 ... 9999,9 Hz

0,1 Hz

0,2 Hz

10000 ... 20000 Hz

0,1 Hz

2 Hz

Mesurement

Current

-4 ... -0,005 mA

1 µA

± (0,03 % + 5 digits )

0,005 ... 4 mA

1 µA

± (0,03 % + 5 digits )

4 ... 20 mA

1 µA

± (0,03 % + 53gits )

20 ... 24 mA

1 µA

± (0,03 % + 5 digits )

Voltage

-3 ... 0,005 V

1 mV

± (0,03 % + 5 digits )

0,005 V ... 10 V

1 mV

± (0,03 % + 5 digits )

10 V ... 15 V

1 mV

± (0,03 % + 5 digits )

Termocouples
Types: K, J, E, T, R, S, N, L, U, B, C

according to type
(see use intructions)

0,1 °C

according to type
(see use intructions)

General observations

Power supply: internal acumulator o mains adapter

Dimensions: 214,0 x 98,7 x 56,0 mm

Weight: 650 g

Environmental conditions: Operating: 0 ... 50 °C, 85 % R.H.., Stored: -20 ... 60 °C, 75 %  R.H..




Details

Datasheet

Manual



Multifunction Calibrator PCE-789
Multifunction Calibrator that measures and simulates current and voltage signals and
thermocouples / integrates a function generator for specific waveforms /
large graphical display with backlight /
 data logger function

The PCE-789 Multifunction Calibrator is a versatile instrument for measuring and simulating process signals. The Multifunction Calibrator measures and simulates current and voltage signals. The curves of different types of thermocouples are stored on your computer, and because of this you can introduce and display the values in ° C. The main feature of this Multifunction Calibrator is the integrated function generator. Apart from the waveforms of sine, triangle, rectangle and cut sane, the multifunction calibrator has saved inside other 10 sinusoidal waveforms. Using the software, which is included in the delivery, you can create specific waveforms and store them on the Multifunction Calibrator. Furthermore, this Multifunction Calibrator can give two overlapping frequencies. For its functionality combined with a robust plastic housing, the multifunction calibrator can be used in many sareas . This Multifunction Calibrator is a useful tool with which you can perform many tasks in areas such as maintenance in the industry, and it can be used by engineers and laboratory technicians in the service sector. This system is supplied by mains adapter and battery allowing mobile use.

User manual for the Multifunction Calibrator - PCE 789  EC certificate for the Multifunction Calibrator - PCE 789  Video for the Multifunction Calibrator - PCE 789  Multifunction Calibrator - PCE 789: Software.  Technical specifications for the Multifunction Calibrator - PCE 789

Multifunction Calibrator - PCE 789
 Multifunction Calibrator


- Different signals simulation and measurement

- Integrated function generator

- Graphic display with backlight

- Battery powered

- Own waveforms simulation

-Data logging function


Technical Specifications

Magnitud

Range

Resolution

Accuracy

Generate / Simulate

Current
(no charge voltage >15 V)

-4 ... -0,005 mA

1 µA

± (0,03 % + 5 digits )

0,005 ... 4 mA

1 µA

± (0,03 % + 5 digits )

4 ... 20 mA

1 µA

± (0,03 % + 53gits )

20 ... 24 mA

1 µA

± (0,03 % + 5 digits )

Voltage
(max 1 mA)

-3 ... -0,005 V

1 mV

± (0,03 % + 5 digits )

0,005 V ... 10 V

1 mV

± (0,03 % + 5 digits )

10 V ... 15 V

1 mV

± (0,03 % + 5 digits )

-10 ... 70 mV

0,01 mV

0,05 mV

Termocouples
Types: K, J, E, T, R, S, N, L, U, B, C

according to type
(see use intructions)

0,1 °C

according to type
(see use intructions)

Frequency

0,3 ... 99,999 Hz

0,1 Hz

0,002 Hz

10,00 ... 999,99 Hz

0,1 Hz

0,02 Hz

1000,0 ... 9999,9 Hz

0,1 Hz

0,2 Hz

10000 ... 20000 Hz

0,1 Hz

2 Hz

Mesurement

Current

-4 ... -0,005 mA

1 µA

± (0,03 % + 5 digits )

0,005 ... 4 mA

1 µA

± (0,03 % + 5 digits )

4 ... 20 mA

1 µA

± (0,03 % + 53gits )

20 ... 24 mA

1 µA

± (0,03 % + 5 digits )

Voltage

-3 ... 0,005 V

1 mV

± (0,03 % + 5 digits )

0,005 V ... 10 V

1 mV

± (0,03 % + 5 digits )

10 V ... 15 V

1 mV

± (0,03 % + 5 digits )

Termocouples
Types: K, J, E, T, R, S, N, L, U, B, C

according to type
(see use intructions)

0,1 °C

according to type
(see use intructions)

General observations

Power supply

internal acumulator o mains adapter

Dimensions

214,0 x 98,7 x 56,0 mm

Weight

650 g

Environmental conditions

Operating: 0 ... 50 °C, 85 % R.H..
Stored: -20 ... 60 °C, 75 %  R.H..

The PCE-789 Multifunction Calibrator is delivered in a hard case to carry the multifunction calibrator and all additional components. In addition to measuring points and alligator clips, a test adapter for connection of thermocouples is also included. Other components of the delivery are the USB cable for PC connection and a mains adapter for continuous operation. This reassures you can work in a comfortable location and also in situ. The Multifunction Calibrator is operated with the keyboard. The graphic display shows all relevant data.

Multifunction Calibrator - PCE 789 delivered in a hard case.

Image of application of the Multifunction Calibrator - PCE 789.

The Multifunction Calibrator is primarily  used for two purposes. On the one hand, you can make precise measurements of current and voltage. This feature allows you to check signal transducers that emit a standard signal. For example, while charging a pressure transducer with a known pressure, or while the Multifunction Calibrator measures the current delivered to the transducer.

The opposite function is the simulation of currents and voltages. This function of the Multifunction Calibrator provides a quick test of devices for evaluation. Digital indicators, recorders or controllers can be charged / energized with currents and voltages and thus verified in their performance and accuracy. The multifunction generator integrated into the Multifunction Calibrator offers a variety of other uses for this versatile instrument.

Image of application of the Multifunction Calibrator - PCE 789.


Delivery content


1 x PCE-789 Multifunction Calibrator, 1 x K-type adapter, 2 x test leads or points, 2 x crocodile clips  2 x test leads, 1 x software, 1 x USB cable, 1 x mains adapter, 1 x carrying case and instructions
