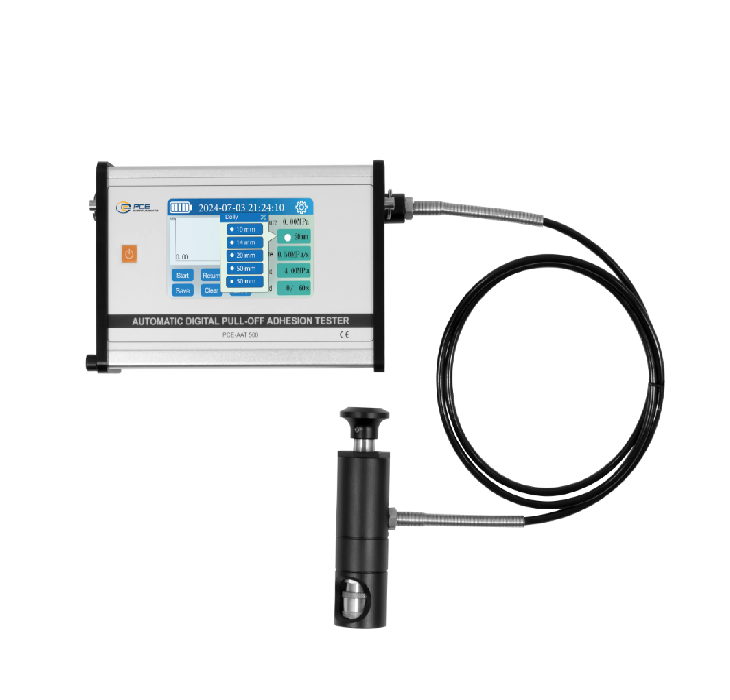

PCE AAT 500 Force Gage (0.1 ~ 80 MPa; 14 ~ 11600 psi)
Manufacturer: PCE Model: AAT 500 P/N: PCE-AAT 500 - Contact
Pressure
Measurement range up to: 0.1 ... 80 MPa
Resolution: 0.01 MPa
Accuracy: ±1 % FS
Pressure
Measurement range up to: 14 ... 11600 psi
Resolution: 1 psi
Accuracy: ±1 % FS
General technical data
Units: MPa, psi
Display type: LCD touchscreen
Display size: 4.8 Inch
Storage medium: Internal memory
Storage capacity: 16 MB
Interface: USB
Standard(s): GB/T 5210, ASTM D4541/D7234, ISO 4624/16276-1
Automatic power-off: 10 min
Menu language: English (GB), English, Chinese
Protection class (device): IP40
Power supply: 100 ... 240 V AC | 50/60 Hz
Connector type: Euro plug
Weight: 4.1 kg
Operating conditions: 0 ... 50 °C , 10 ... 90 % RH
Storage conditions: 0 ... 50 °C , 10 ... 90 % RH
(Rechargeable) battery: 1 x 3,7 V 18650 , Lithium-ion battery
Capacity: 3400 mAh
Dimensions ( L x W x H ): 360 x 100 x 130 mm
Delivery Scope
1 x Adhesion Tester PCE-AAT 500
1 x 20 mm base for measuring heads
20 x 20 mm measuring heads
2 x cutting tool for 20 mm measuring heads
1 x electric cutting tool
1 x two-component adhesive
1 x manual gun for dual cartridges
1 x 12.6 V / 1.5 A mains adaptor
1 x 5 V / 1 A mains adaptor (for electric cutting tool)
1 x micro USB cable
1 x USB-A cable
1 x shoulder strap
1 x 3 mm Allen key
1 x user manual
1 x carrying case
