Measuring range: 0 ... 1250 µm; 0 ... 49.2 mil
Min. coating thickness of base material: 50 µm
Smallest measuring surface (diameter): 10 mm
Min. radius of curvature convex: 15 mm
Min. radius of curvature concave: 15 mm
Accuracy: ± (1% + 1 µm); ± (1% + 0.04 mil)
Resolution:
0.1µm (<99.9 µm); 0.004 mil (<3.9 mil)
1 µm (> 100 µm); 0.04 mil (> 3.9 mil)
Calibration: Single point, multiple point
Data storage: 1260 data
Measuring modes: Single measurements, continuous measurement
Interfaces: Wifi , USB
Operating conditions: 0 ... 50°C / 32 ... 122°F, 20 ... 90% RH non-condensing
Dimensions: 170 x 85 x 35 mm / 6.7 x 3.3 x 1.4 in
Weight: Approx. 335 g / < 1 lb (with battery)
Delivery Scope:

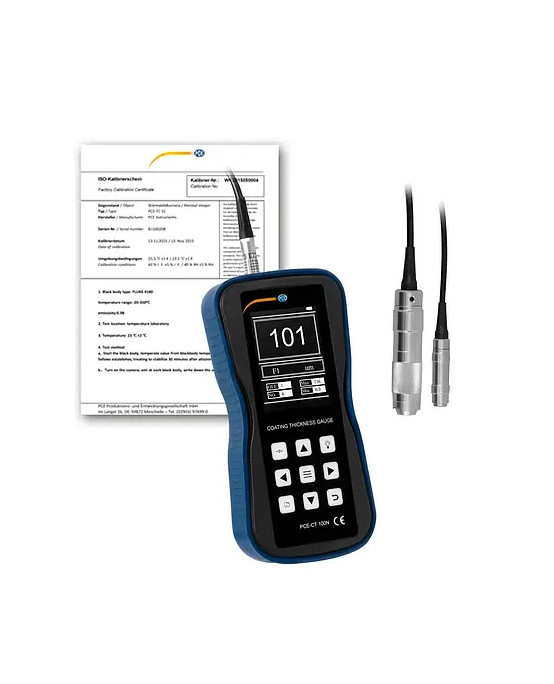

1 x Paint thickness gauge PCE-CT 100N
1 x NFe probe
1 x Fe probe
1 x USB data carrier
1 x Reference film set
1 x Calibration plate (ferrous)
1 x Calibration plate (non-ferrous)
2 x 1.5V AA batteries
1 x Instruction manual
1 x ISO Calibration Certificate
