Measurable substrates: Fe, NFe
Probe: external
Measuring range: 0~1500µm
Resolution:
0.1 µm (in the measuring range 0~99.9µm)
1 µm (in the measuring range 100~1500µm)
Accuracy: ±(1µm + 2% of the layer thickness)
Units: µm, mil
Smallest curvature: convex 5mm, concave 5mm
Smallest measuring area: 10x10mm
Minimum thickness of the substrate: 0.4mm
Interface: Bluetooth, micro USB
Memory: 10 groups with 60 measurements each
Power supply: 2x1.5V AA batteries, 5V USB interface
Environmental conditions: -10~50°C, 10~85%RH
Dimensions: 126x69x35mm (without sensor)
Weight: approx. 97g (without batteries)
Delivery scope:

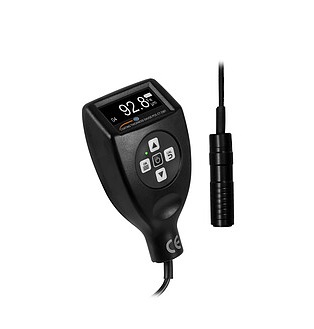

1 x PCE-CT 23BT Coating Thickness Meter
5 x calibration foil reference
1 x Fe zero standard
1 x NFe zero standard
1 x transport loop
2 x 1.5 V AA batteries
1 x carrying case
1 x instruction manual
