Measuring range: 0 ... 10 N, 0 ... 2.25 lbs
Accuracy: ± 0.1% of the measuring range
Resolution: 0.005 N
Measurement units: N, kg, lb, KPa
Display: 2.8" TFT graphic display
Alarm Modes: Inside, Outside, Crack, Shutdown
Sampling rate: 6 ... 1600 Hz
Storage: 100 measurements
Power supply: NiMh battery 6V / 1600-mAh
Battery life: About 10 hours
Charging adapter: 12V / 1A
Outputs: Interface: USB
Switching output: 12V / 50-mA
Protection class: IP 54
Operating and storage conditions: -10 ... 50°C / 14 ... 122°F; 5 ... 95% rh non-condensing
Force-receiving piece: M6 x 7 mm
Dimensions: 200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 in
Weight: 540 g / 1.2 lbs

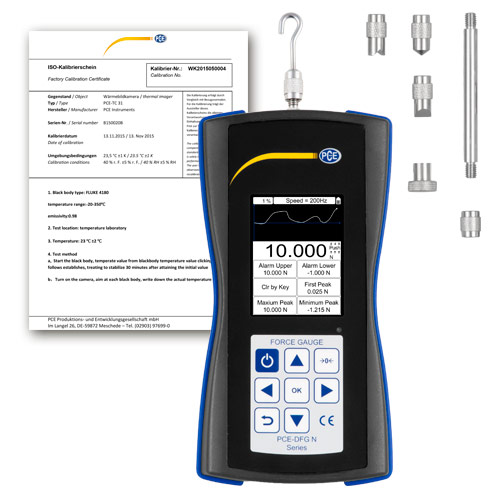

Delivery Scope:
1 x PCE-DFG N 10 Force gauge
1 x Chisel head adapter
1 x Flat head adapter
1 x Pointed head adapter
1 x Hook adapter
1 x Notched head adapter
1 x Extension bar (90 mm / 3.5 in)
1 x PC software
1 x USB data cable
1 x Power supply
1 x Carrying case
1 x User manual
1 x ISO calibration certificate
