Measuring range: 0 ... 5 kN / 5,000 N / 500 kg / 1,124 lbs
Resolution: 0.5 N / 0.1 lbs
Accuracy: ± 0.5% of the measuring range
Measurement units: N, kg, lb, kPa
Display: 2.8" TFT graphic display
Alarm Modes: Inside, Outside, Crack, Shutdown
Sampling rate: 6 ... 1600 Hz
Storage: 100 measurements
Power supply: NiMH battery, 6V / 1600-mAh
Battery life: About 10 hours
Power adapter / charging adapter: 12V / 1A
Outputs: Interface: USB switching output: 12V / 50-mA
Protection class: IP 54
Operating and storage conditions: -10 ... 50°C / -14 ... 122°F; 5 ... 95% rh non-condensing
Dimensions load cell: Ø 32 mm / H 16 mm / M5 thread (see technical drawing)
Cable length load cell: About 3 m / 9.8 ft
Dimensions: 200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 in
Weight: 540 g / 1.2 lbs
Delivery Scope:

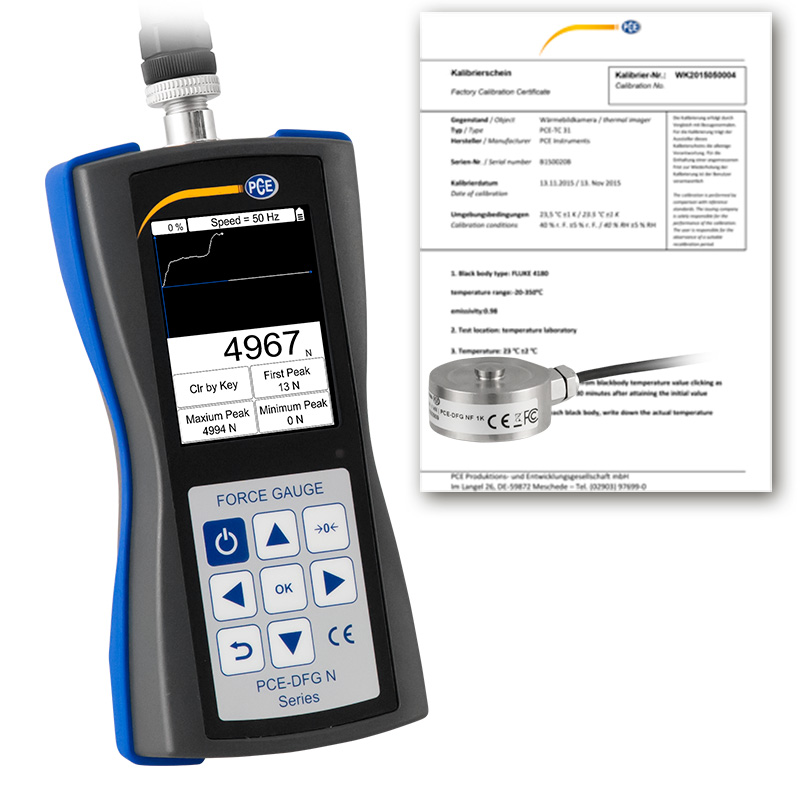

1 x Force Gauge PCE-DFG NF 5K
1 x Load cell (depending on model)
1 x USB cable
1 x Charger
1 x PC software
1 x User manual
1 x ISO calibration certificate
