- Differential pressure:
Measuring range: 0 bar ... +15 bar
Resolution: 0.01 bar
Accuracy: 0.5 % v. Mb.
- Điểm sương:
Messbereich: -100 °C ... +50 °C
Auflösung: 0,1 °C
- Điểm sương:
Measuring range: 0 °C ... +20 °C
Resolution: 0.1 °C
Accuracy: ± 1°C
- Điểm sương:
Measuring range: -60 °C ... +50 °C
Resolution: 0.1 °C
Accuracy: ± 2°C
- Điểm sương:
Measuring range: -100 °C ... -60 °C
Resolution: 0.1 °C
Accuracy: ± 3°C
- Temperature:
Measuring range: -30 °C ... +50 °C
Resolution: 0.1 °C
Accuracy: ± 0.3 °C
- General technical data:
Measurement functions: Average value
Units: °C, °F, bar, psi, MPa, °C Td, %rH, g/m³ atm, mg/m³ atm, ppmv, g/kg, °C Td atm.
Connections: G1/2" with 6mm quick coupling
Display type: LC Touch Display
Display size: 3.5 inches
Display refresh rate: 1 x per second
Storage medium: Internal memory
Memory interval of: 1 s
Memory interval up to: 60 s
Memory capacity: 100 million values
Interface: USB-C
Standard(s): ISO8573-1
Standard(s) Additional information: Evaluation according to ISO8573-1 only possible when purchasing the additional functions!
Order no. No. PCE-DPM 10-SF
SensorQCM (quartz crystal microbalance)
Response time: 1 s
Measuring medium; Air, nitrogen, argon, carbon dioxide, oxygen
Automatic switch-off adjustable: 10 ... 60 min.
Automatic switch-off can be deactivated: Yes
Housing: ABS
Menu language: English, German, French, Spanish, Chinese, Korean, Japanese
Protection class (device): IP30
Power supply: 5V DC 3 A (via USB-C)
Weight: 775 g
Dimensions (L x W x H): 310 x 100 x 60 mm
Other dimensions: PTFE hose 1.5 m with 6mm quick coupling
Operating conditions: 0 ... 40 °C , 0 ... 80 % RH
Storage conditions: 0 ... 40 °C , 0 ... 80 % r.H
Instruction languages: German
- Batteries and rechargeable batteries:
Type: Lithium-ion battery
Lithium info: Lithium in product (built-in or enclosed)
Capacity: 3500 mAh
Voltage: 3.7 V
SystemSecondary: Rechargeable battery / rechargeable battery
Number: 1
Weight: 55 g
Weight class: Class 05 (51 - 150g)
- Delivery scope:

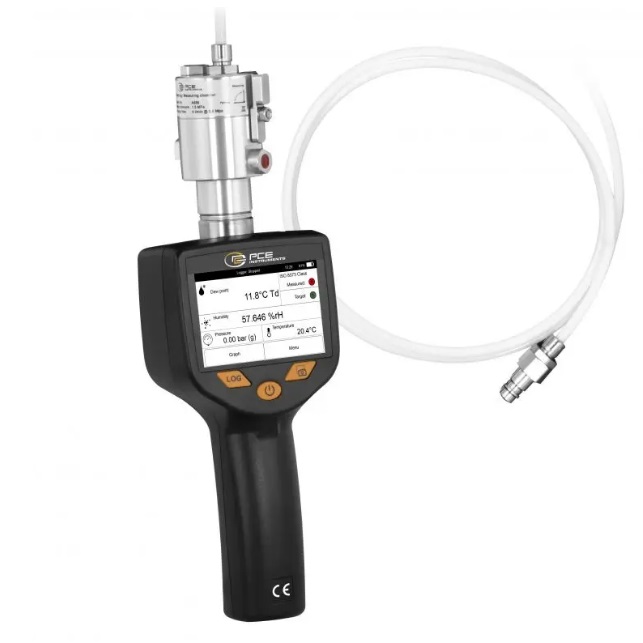

1x Moisture Meter PCE-DPM 10
1x PTFE hose with quick coupling
1x USB power supply with adapters
1x USB-C cable
1x USB-C stick
1x transport case
1x software (download)
1x operating instructions
