Input (selectable):
1 ... 100 V AC
2.5 ... 250 V AC
4 ... 400 V AC
20 ... 500 Hz (at 24 ... 480 V)
0.01 ... 1 A AC
0.05 ... 5 A AC
Accuracy : ± (0.2 % of full scale + 1 dgt.) (at 20 ... 500 Hz)
Internal resistance: 10 Ω ± 1 %
Scaling : 2-point
Display: 4-digit, 7-segments, LED, digit height: 20 mm / 0.78"
Display range: -1999 ... 9999
Power source for sensor (selectable): 24 V DC, max. 30 mA
Ambient temperature during operation: -10 °C ... +55 °C / 14 °F ... 131 °F
storage: : -25 °C ... +85 °C / -13 °F ... 185 °F
Diameters: 96 mm x 48 mm x 64 mm / 3.7 x 1.8 x 2.5"
Size of switch board: 92 mm x 45 mm / 3.6 x 1.7" (according to DIN)
Power source (selectable):
24 V AC
110 V AC
230 V AC
85 ... 253 V AC/DC
20 ... 40 V AC/DC
Protection class: front: IP 65
Weight : < 200 g / 7oz
Mounting: mounting clips with clamp screws, connection via plug board
Enclosure: robust plastic housing
Delivery Scope:

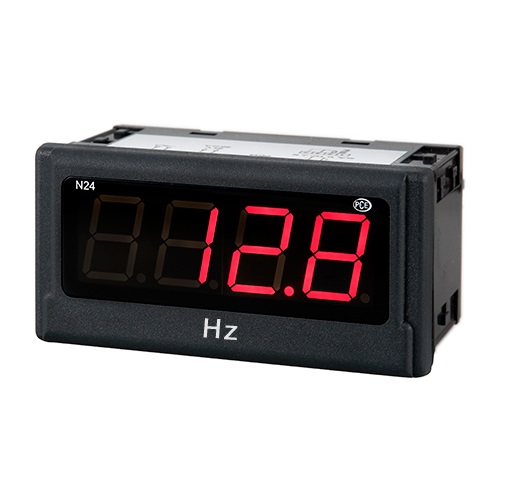

1 x Power Indicator PCE-N24Z, fastening material, seal, operating instructions
