Direct access to our certified experts
Magnification: 15, 20, 25, 30 times
Working distance: 430 mm / 16.9"
Depth of field: ca. 12 mm / 0.47"
Object field: ca. 32 x 19 mm / 1.26 x 0.74" or 24 x 15 mm / 0.94 x 0.59"
Image capture: 2 x 1,920 x 1,080 Pixel (Full HD)
LED lighting: 40,000 Lux; 5,000 K
Image reproduction:
60 Hz Full HD for 2D
60 Hz Full HD interlaced for 3D
Connections: 2 x USB, 1 x RJ 45 (Ethernet), 1 x HDMI
Stand length: 840 mm / 33"
Color depth: 24 Bit
Monitor (screen diagonal): 21.5"
Power supply: 120 V … 240 V (50/60 HZ)
Power consumption: ca. 50W (without monitor)
Protection class: IP20
Monitor installation: stand / Vesa mount
Monitor dimensions: 507 x 178 x 390 mm / 20 x 7 x 15"
Monitor weight: 3.1 kg / 6.8 lb
Operating conditions: 5 °C ... 45 °C / 41 °F ... 113 °F
Packaging: 662 x 540 x 302 mm / 26 x 21 x 12"
Total weight (gross): ca. 8 kg / 17.6 lb
Delivery scope:

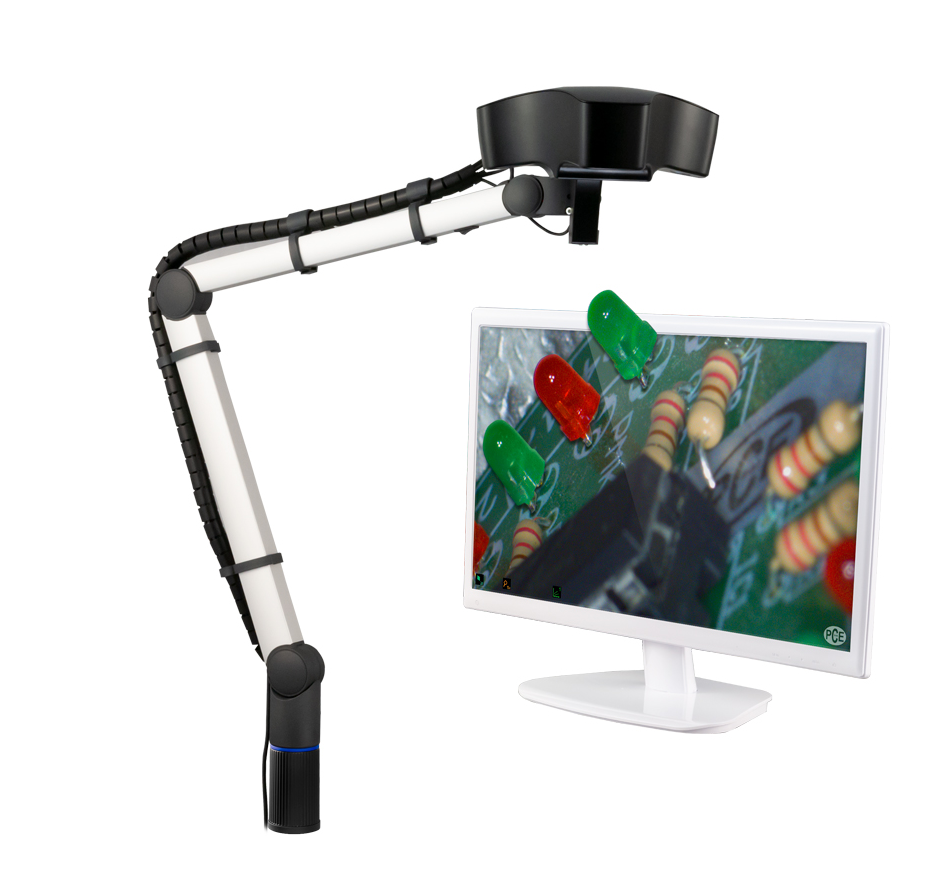

1 x PCE-OVM 3D digital microscope
1 x 3D monitor with power supply
1 x Table tripod
1 x Foot switch
1 x USB mouse
1 x Work pad
2 x 3D glasses
1 x USB stick
1 x Instruction manual
