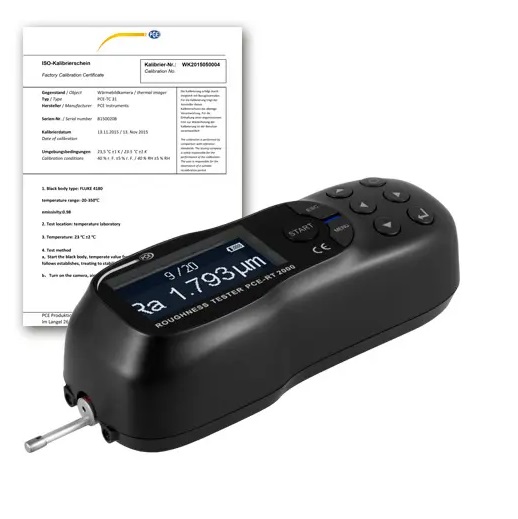

PCE RT 2000BT-ICA Roughness Tester (0.005~1000 μm; ISO Calibration Cert.)

Measuring ranges: Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc

Ra, Rq, Rc: 0.005 μm ... 16 μm

Rz, Rt, Rp, Rv: 0.02 μm ... 200 μm

Rsm: 5 μm ... 1000 μm

Rsk: -1 ... 1

Radius probe tip: 5 µm

Material probe tip: Diamond, 90° angled

Max. recommended force for static measurement: 4 mN (0.4 gf)

Radius longitudinal guide bar: 45 mm / 1.77"

Standards: ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287)

Maximum driving distance: 15 mm / 0.59"

Measuring principle: Inductive

Cut-off wavelength: 0.25 mm / 0.8 mm / 2.5 mm / 0.009" / 0.03" / 0.098"

Testing speed: 0.135 mm/s at cut-off wavelength: 0.25 mm

0.5 mm/s at cut-off wavelength: 0.8 mm

1 mm/s at cut-off wavelength: 2.5 mm

Reversing speed: 1 mm/s

Measuring accuracy: < ± 10%

Repeatability: < 6%

Display: OLED

Interface: Micro USB, Bluetooth

Power supply: Rechargeable Li-ion battery

Delivery Scope:

1 x Material Surface Roughness Tester PCE-RT 2000BT-ICA

1 x Microprobe

1 x Protective cap for buttons

1 x Clamping device

1 x Software

1 x Calibration plate

1 x Roughness standard

1 x USB cable

1 x Charging adapter

1 x Transport case

1 x User manual

1 x ISO Calibration Certificate
