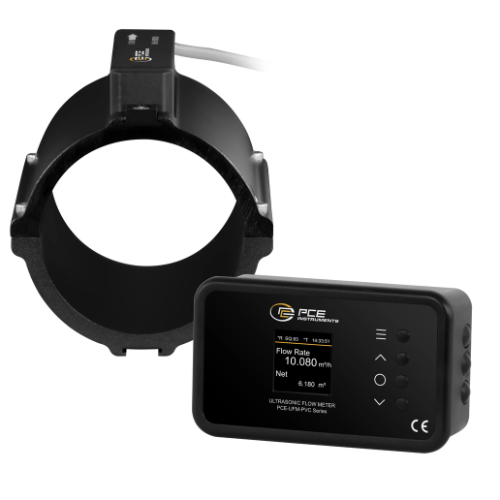

PCE UFM 80PVC Ultrasonic flow meter (0.55 ... 90 m³/h)

Specification

Speed

Measurement range up to:  0.03 ... 5 m/s

Resolution:  0.01 m/s

Accuracy:  ±2 % of Rd (0.3 ... 5 m/s)

Speed

Measurement range up to:  0.1 ... 16 ft/s

Resolution:  0.1 ft/s

Accuracy:  ±2 % of Rd (1.0 ... 16 ft/s)

Volume flow

Measurement range up to:  0.55 ... 90 m³/h

Resolution:  0.01 m³/h

Accuracy:  ±2 % of Rd

General technical data

Display type:  LC colour display

Display size:  1.44 Inch

Display resolution:  128 x 128

Interface:  Ethernet, PoE

Materials:  PVC

Measured medium:  Water

Repeatability:  0.2 %

Communication:  HTTP, MQTT

Menu language:  English, Chinese, English (GB)

Protection class (device):  IP54

Power supply:  PoE

Connector type:  RJ45

Weight:  1491 g

Operating conditions:  -10 ... 50 °C , 0 ... 99 % RH

Storage conditions:  -10 ... 50 °C , 0 ... 99 % RH

Dimensions ( L x W x D ):  65 x 111 x 43 mm

Delivery Scope

1 x Ultrasonic flow meter PCE-UFM 80PVC

1 x sensor with Ethernet cable 9 m

1 x PoE network cable 2 m

1 x ultrasonic contact gel

1 x silicone seal 1 m

4 x coupling pad

1 x Allen key

1 x user manual

Note: The Android app "dial Meter Tube" can only be downloaded from our shop, under Downloads!
