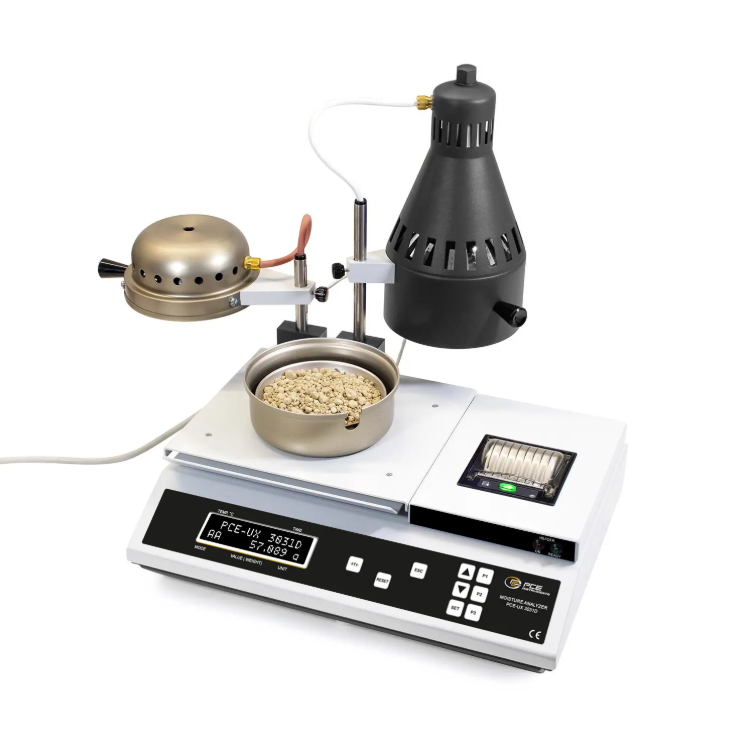

PCE UX 3031D Moisture Analyser Balance (0~100 %, 220 g; 0.001 g)

Absolute moisture

Measurement range up to: 0 ... 100 %

Resolution: 0.01 %

Accuracy: 0.01 %

Weighing range

Measurement range up to [Max]: 220 g

Resolution [d]: 0.001 g

Accuracy: 0.001 g

General technical data

Outputs: V24

Measuring functions: % moisture, % dry matter, % moisture bd, g residual weight / kg, Residual weight

Display type: LCD with backlight

Display size: 4 Inch

Interface: USB, RS232

Heating temperature: 40 ... 180 °C

Heating temperature 2: 105 ... 360 °C

Minimum load [min]: 4 g

Menu language: English, German, English (GB)

Protection class (device): IP20

Power supply: 230V AC | 48/63 Hz

Connector type: Schuko plug

Operating conditions: 10 ... 40 °C , 0 ... 90 % RH

Storage conditions: 10 ... 40 °C , 0 ... 90 % RH

Dimensions ( L x W x H x D ): 380 x 380 x 440 x 280 mm

Other dimensions: Inner pan size: Ø 105 / 115 mm

Inner pan height: 9 mm

Weight: 8400 g
