Manufacturer: PCE-UK

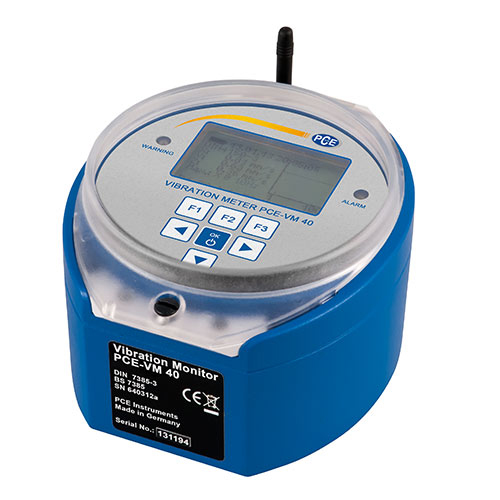

Model: PCE-VM 40A
Warranty: 12 months
Specification
Measuring units: Peak value of vibration speed; Peak value of vibration acceleration
Supported standards: DIN 4150-3; BS 7385; SN 640312A
Vibration sensor: triaxial piezo-electric acceleration sensor
Display range (peak) acceleration: 0.001 ... 15 m/s²
Display range (peak) speed: 0.01 ... 2,400 mm/s at 1 Hz; 0.01 ... 30 mm/s at 80 Hz
(frequency-dependend)
Accuracy (reference value: 16 Hz): ±3 %, ±2 digits, 100 Hz low pass; ±3 %, ±2 digits, 398 Hz low pass
Display: LCD, b&w, 128 x 64 pixel, backlight
; 3 peak values (x/y/z direction) or vector sum, main frequency, 50-lines FFT spectrum, battery status, date and time
Alarm: warning and alarm LEDs next to the display; relay output (chargeover contact, max. 100 VDC / 2 A)
Memory: built-in micro-SD card; max. 100,000 readings (x/y/z, frequency, date, time, device name)
Analogue digital convertor: 24 bit, sigma-delta
USB interface: USB 2.0, CDC mode, via VM2x-USB cable
Battery: NiMH, 4.8 V, charging time: 10 h; no battery power consumption when connected via USB (e.g. to an USB powerbank or a USB mains adaptor)
Battery service life: 5 ... 15 days, depending on the temperature and duty cycle
Languages: German, English
Temperature range: -20 °C ... +60 °C / -4 °F ... +140 °F
Protection class: IP 64
Dimensions: 150 mm x 140 mm x 80 mm; 5.9 in x 5.5 in x 3.1 in
Weight: 2 kg / 4.4 lbs
Dilivery Contents
1 x PCE-VM 40A Accelerometer
1 x USB cable VM2x-USB
1 x mains adaptor VM40-CH
1 x instruction manual
