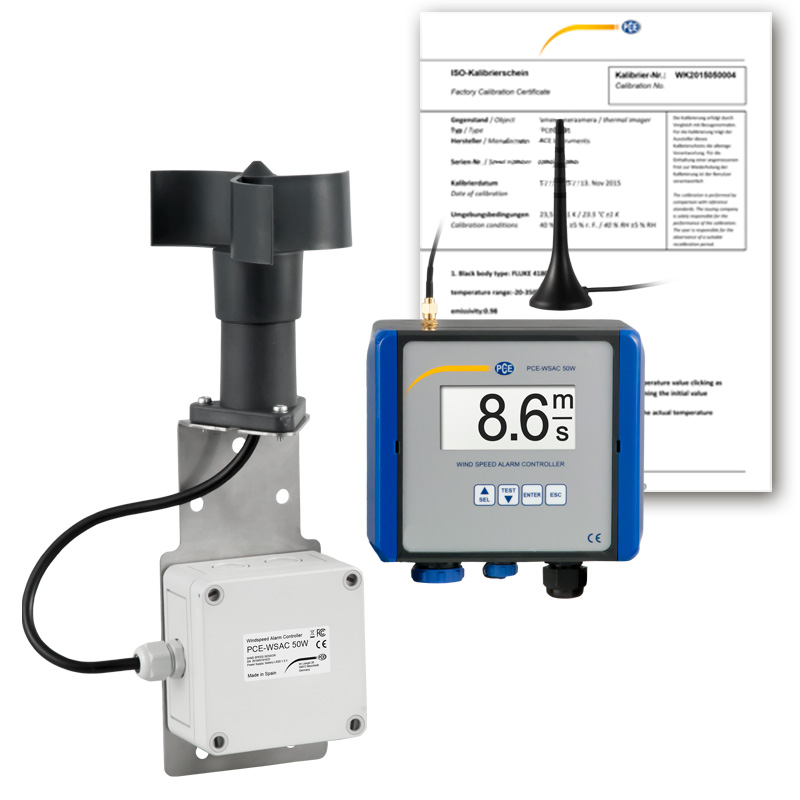

- Display of anemometer PCE-WSAC 50W 24
Entrance: Pulse, analog (4 ... 20-mA) or radio
Radio: IEEE 802.15.4 ISM 2.4 GHz
Units: km/h, mph, m/s
Power supply for sensors: +15V DC
Analog output: 4 ... 20-mA
Maximum input impedance: 500 Ω
Resolution of the analog output: 10 bits
Accuracy of the analog output: ± 1.5%
Alarm relay: Max. 250V AC, 8 A
Display: Backlit 128 x 64 pixel LC display
Casing: Robust plastic housing
Protection class: IP65
Dimensions: 145 x 95 x 125 mm / 5.7 x 3.7 x 4.9 in
Weight : 650 g / 1.4 lbs
- Sensor of anemometer PCE-WSAC 50W
Measuring range: 4 ... 180 km / h
Minimum start speed: 8 km / h
Accuracy:
± 1 km / h in the range 4 ... 15 km / h
± 3% in the range 16 ... 180 km / h
Power supply: Battery mono cell D 1.5V DC
Power consumption: Approx. 0.3 W with 1.5V DC power supply
Housing material: PA + FG
Ball-bearing: Stainless steel X65Cr13
Holder: Stainless steel AISI 304
Weight (with standard bracket): About 680 g / 1.5 lbs
Weight with self-leveling bracket: About 900 g / 2 lbs
Dimensions: 320 x 110 x 100 mm / 12.6 x 4.3 x 3.9 in
Storage temperature: -35 ... 70°C / -31 ... 158°F
Ambient temperature: -20 ... 70°C / -4 ... 158°F
Protection: IP65
Delivery Scope:
1 x Display of anemometer PCE-WSAC 50W 24-ICA
1 x Wind sensor of the anemometer
1 x Self-leveling additional bracket
1 x Radio antenna
1 x Battery Monocell D 1.5V DC
1 x User manual
1 x ISO calibration certificate
