Specification
Ferrous metals (Fe): magnetic induction
Non-ferrous metals (NFe): eddy current
Measuring range: 0 µm ... 5000 µm / 0 mils ... 196.8 mils
Accuracy: ±2 % or 2.5 µm / 0.1 mils (the highest value is valid)
Resolution: 0.1 µm (0.0 µm ... 99.9 µm) / 0.004 mils (0.0 mils ... 4.0 mils)
1 µm (100 µm ... 5000 µm) / 0.04 mils (4.0 mils ... 200 mils)
Smallest measuring surface: Ø 6 mm / Ø 0.24 in
Smallest radius of curvature: convex. 5 mm / 0.2 in
concave: 60 mm / 2.4 in
Minimum thickness of the base material: 0.3 mm / 0.01 in (for Fe-measurement)
0.5 mm / 0.02 in (for NFe-measurement)
Measurement modes: single and interval measurement
Units: µm, mils
Display lighting: Yes
Environmental conditions: 0° C ... +50 ° C / 32° F ... 122° F
< 80% RH
Power supply: 1.5 V AAA batteries
Device dimension: 129 mm x 69 mm x 27 mm
5.1 in x 2.7 in x 1.1 in
Weight: 130 g / 0.3 lbs including batteries
Delivery contents

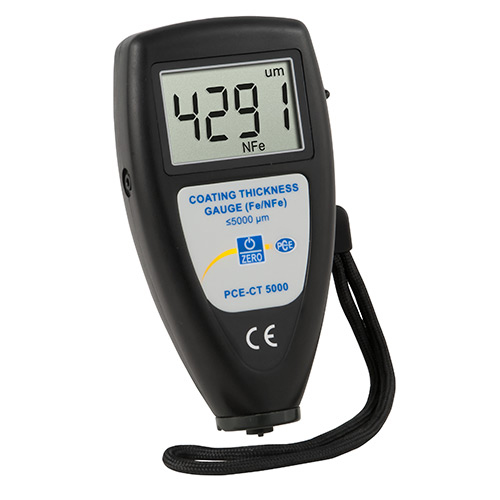

1 x PCE-CT 5000 Material Thickness Meter with integrated probe
1 x storage case
2 x 1.5 V AAA battery
1 x set of calibration standards
1 x user manual
