Specification
Sound
Measurement range: 35 ... 100 dB
Resolution: 0.1 dB
Frequency range: 30 Hz ... 10 kHz
Frequency weighting: C
Time weighting: Fast
Accuracy: ± 5 dB at 94 dB, 1 kHz sine wave
Microphone: Internal, electric condenser
Light
Measurement range: 4,000 ... 40,000 lux (40,000 lux range reading x 10)
Overrate display: Highest digit of "OL"
Accuracy: ± 5% measurement value + 10 digits
(calibrated to standard incandescent lamp at color temperature 2856k)
Repeatability: ± 2%
Temperature characteristic: ± 0.1% / °C (°F)
Sensor: Internal, silicon photodiode with filter
Humidity
Measurement range: 33 ... 99% relative humidity (RH)
Resolution: 1% RH
Accuracy: ± 3% measurement value + 5% RH
Temperature
Measurement range
Indoor: 0 ... 50°C
Type K: -20 ... 1300°C
Resolution
Indoor and Type K to 400°C : 0.1°C
Type K to 1300°C : 1°C
Accuracy: ± 3% measurement value ± 3°C
Electrical
AC / DC current (auto-ranging for uA and mA)
Measurement range: 400-uA / 4000-uA / 40-mA / 400-mA / 10 A
0.1-uA / 1-uA / 10-uA / 100-uA / 10-mA
Resolution: ± 1% measurement value ± 2 digits (up to 40-mA DC)
Accuracy:
± 1.2% value ± 2 digits (up to 400-mA DC / 40-mA AC)
± 1.5% value ± 2 digits (up to 400-mA AC)
± 2% value ± 5 digits (up to 10 A)
Resistance (auto-ranging)
Measurement range: 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Resolution: 0.1 Ω / 1 Ω / 10 Ω / 100 Ω / 10 kΩ / 1 MΩ
Accuracy
± 1.5% value ± 4 digits (up to 400 Ω)
± 1.5% value ± 2 digits (up to 400 kΩ)
± 2% value ± 2 digits (up to 4 MΩ)
± 2.5% value ± 2 digits (up to 40 MΩ)
Capacitance (auto-ranging)
Measurement range: 50 nF / 500 nF / 5 uF / 50 uF / 100 uF
Resolution: 10 pF / 0.1 nF / 1 nF / 10 nF / 0.1 uF
Accuracy
± 5% value ± 20 digits (up to 50 nF)
± 3% value ± 5 digits (up to 50 uF)
± 4% value ± 5 digits (up to 100 uF)
Frequency (auto-ranging)
Measurement range: 5 Hz / 50 Hz / 500 Hz / 5 kHz / 50 kHz / 500 kHz / 10 MHz
Resolution: 0.001 Hz / 0.01 Hz / 0.1 Hz / 1 Hz / 10 Hz / 100 Hz / 1 kHz
Accuracy:
± 1.2% value ± 3 digits (up to 500 kHz)
± 1.5% value ± 4 digits (up to 10 MHz)
General specifications
Display: LCD
Overrange indicator: "OL"
Measurement rate: 3 times per second, nominal
Operating conditions: 0 ... 40°C/ < 70% RH
Storage conditions: -10 ... 60°C / < 80% RH
Power supply: 1 x 9V battery
Meter dimensions: 170 x 78 x 48 mm
Weight: 335 g
Delivery contents

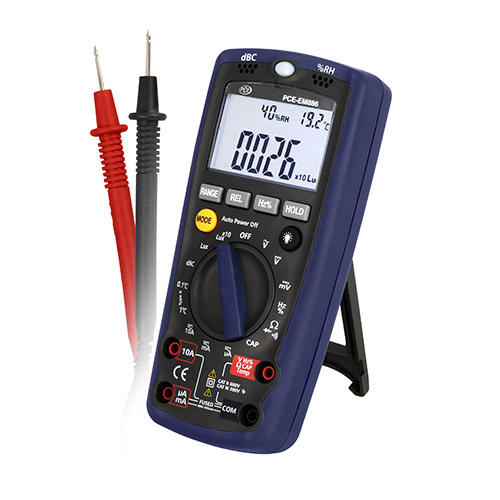

1 x PCE-EM 886 multifunction noise meter
1 x Temperature sensor with type K thermocouple
1 x Set of electrical test leads
1 x 9V battery
1 x User manual
