Specification
Measuring range: 300 ... 1600°C / 572 ...2912°F
Spectral range: 1 ... 1.7 µm
Focus distance: 1500 mm / 4.9 ft
Spot: @ 1500 mm / 4.9 ft at 7.2 mm
Analog output: 0/4 ... 20-mA (scaleable)
Load: 500 Ω
Current output resolution: 0.2 K + 0.03%
Display: LED
Resolution Display: 1
Response time: t98 <2 ms
Repeatability: 1 K
Uncertainty: 0.3% of reading + 2.5 K
Switching output: OUT 1 OC 24V / 150-mA
Power supply: 24V DC
Environmental Electronics : 0 ... 65°C / 32 ... 149°F, max. 95% r.h.
Probe + FO: 0 ... 250°C / 32 ... 482°F
Weight: 400 g / 2.2 lbs
Dimensions Electronics: M30 x 200 mm / 1.2 x 7.9 in (without plugs)
FO measuring head: M30 x 86 mm / 1.2 x 3.4 in
Delivery contents

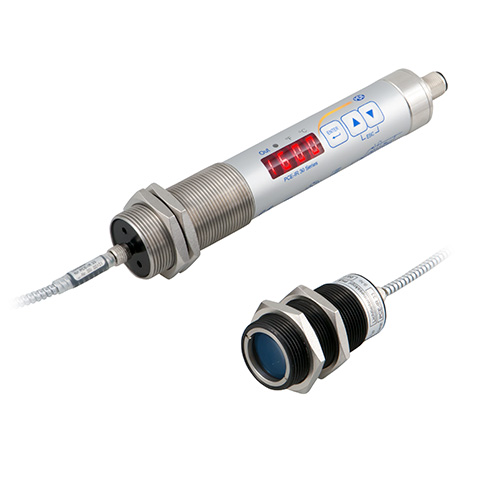

1 x Infrared thermometer PCE-IR 33
1 x Sensor head for the PCE-IR 33
1 x Glass fiber cable
1 x Manual
