Specification
Measuring range: 5 N / 0.5 kg / 1.1 lbs
Resolution: 0.0005 N / 0.00005 kg / 0.0001 lbs
Measurement accuracy: ± 0.2% of measuring range
Calibration: 5-point calibration possible
Measurement Units: N, gf, kgf, ozf, kg, lbf, mN
Max. overload: ± 20% of measuring range
Measuring rate: Adjustable 10/5/2/1 values per s
Display: Graphic display 160 x 128 px, simultaneous display of relevant data
Menu navigation: Multilingual
Internal memory: 1000 values
Storage:
Manually - by pressing a button
Automatically - after AUTO-peak function
Interface: Serial RS-232 - 9 pin; USB 2.0
Printer port: Via the RS-232 interface or USB 2.0
Software and data cable: Incl. software for evaluating and controlling
Environmental conditions: Operating: -10°C ... 40°C / 14°F ... 104°F; ,20 ... 80% R.H.
Storage: -20°C ... 50°C / -4°F ... 122°F
5 ... 90% R.H.
Power supply: NiMH battery 800-mAh internal, Universal USB/BM charger
Input: 110 ... 240V AC
Battery life: About 16 hrs. of continuous operation at full load
Force-receiving piece: 7 mm / 0.3 in long, 6 mm / 0.2 in thread
Dimensions: 144 mm x 73 m x 33 mm; 5.7 in x 2.9 in x 1.3 in
Weight: 0.7 kg / 1.5 lbs
Delivery contents

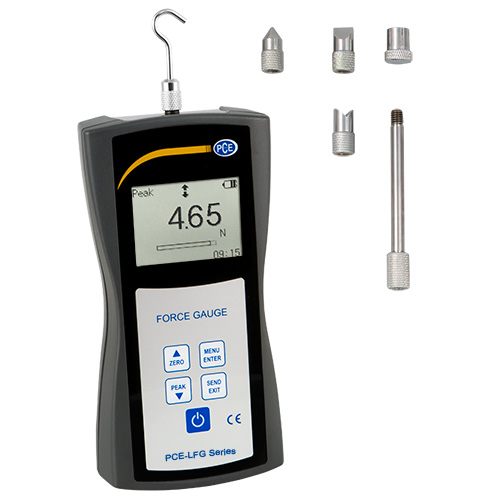

1 x PCE-LFG 5 Dynamometer
1 x Chisel head adapter
1 x Flathead Adapter
1 x Pointed head adapter
1 x Hook adapter
1 x Ball head adapter
1 x Extension rod (90 mm / 3.5 in)
1 x Evaluation and control software incl. USB data cable
1 x Power supply
1 x Carrying case
1 x User manual
