Specification
Detector: FPA, uncooled (25 x 25 µm)
Optic resolution: 160 x 120 pixels
Spectral range: 7.5 ... 13 µm
Temperature range: -20 ... +100 °C, 0 ... +250 °C, +150 ... +900 °C
additional range: +200 ... +1500 °C (not available for optival 72 ° HFOV )
Image frequency 128 Hz
Optics (FOV):
23 ° x 17 ° FOV / f = 10 mm, max. +900 °C or
41 ° x 31 ° FOV / f = 5.7 mm ,max. +900 °C or
6 ° x 5 ° FOV / f = 35.5 mm, max. +900 °C or
41 ° x 31 ° FOV / f = 5.7 mm, max. +900 °C or
72 ° x 52 ° FOV / f = 3.3 mm, max. +900 °C or
23 ° x 17 ° FOV / f = 10 mm, max. +1.500 °C or
41 ° x 31 ° FOV / f = 5.7 mm, max. +1.500 °C
6 ° x 5 ° FOV / f = 35.5 mm, max. +1.500 °C
72 ° x 52 ° FOV / f = 3.3 mm, max. +1.500 °C
Thermal sensitivity (NETD):
0,08 K with 23° x 17° FOV / F = 0,8
0,3 K with 6° x 5° FOV / F = 1,6
0,1 K with 41° x 31° FOV and 72° x 52° FOV /
F = 1
System accuracy: ± 2 °C or ± 2 %
Interface: USB 2.0
Process interface (PIF): 0 ... 10 V input, digital input,
0 ... 10 V output
Surrounding temperature: 0 ... +50 °C
Storage temperature: -40 ... +70 °C
Relative humidity: 20 ... 80 % r.H., non condensing
Dimensions enclosure: 45 x 45 x 62 mm
Protection category enclosure: IP 67 (NEMA 4)
Weight: 195 g, incl. object
Shock / vibration: 25G, IEC 68-2-29 / 2G, IEC 68-2-6
Input for stand: 1/4-20 UNC
Power Supply: via. USB
Delivery contents

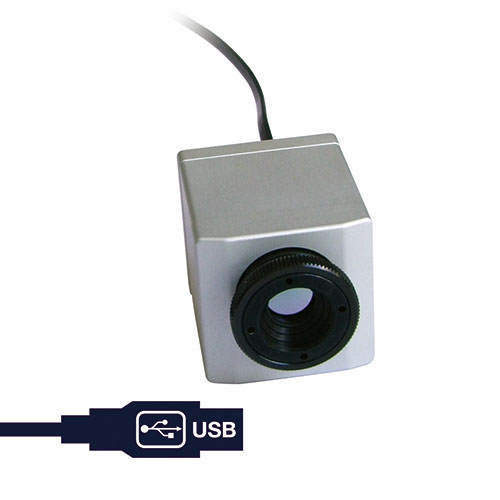

1 x infrared camera PCE PI160
3 x optics (23°, 6°, 41°) incl. calibration certificate
1 x USB cable (1m)
1 x USB cable (10m)
1 x table stand (20 ... 63 cm),
1 x PIF cable with connected terminal block (1 m)
1 x software package PCE-PI Connect
1 x aluminum case
1 x instruction manual
