Specification
Detector: FPA, uncooled (25 x 25 µm)
Optic resolution: 382 x 288 pixels
Spectral range: 7.5 ... 13 µm
Temperature range: -20 ... +100 °C, 0 ... +250 °C, +150 ... +900 °C
additional range: +200 ... +1500 °C (not available for optival 72 ° HFOV )
Image frequency: 80 Hz
Optics (FOV):
38 ° x 29 ° FOV / f = 15 mm, max. +900 °C or
62 ° x 49 ° FOV / f = 8 mm ,max. +900 °C or
13 ° x 10 ° FOV / f = 41 mm, max. +900 °C or
38 ° x 29 ° FOV / f = 15 mm, max. +1.500 °C or
62 ° x 49 ° FOV / f = 8 mm, max. +1.500 °C or
13 ° x 10 ° FOV / f = 41 mm, max. +1.500 °C
Thermal sensitivity (NETD):
PI400:
0,08 K with 38 ° x 29 ° FOV / F = 0,8
0,08 K with 62 ° x 49 ° FOV / F = 0,8
0,1 K with 13 ° x 10 ° FOV / F = 1,0
Accuracy: ± 2 °C or ± 2 %
Interface: USB 2.0
Process interface (PIF): 0 ... 10 V input, digital input,
0 ... 10 V output
Surrounding temperature PI400: 0 ... +50 °C
Storage temperature: PI400: -40 ... +70 °C
Relative humidity: 20 ... 80 % r.H., non condensing
Dimensions enclosure: 46 x 56 x 90 mm
Protection category enclosure: IP 67 (NEMA 4)
Weight: 320 g, incl. object
Shock / vibration: 25G, IEC 68-2-29 / 2G, IEC 68-2-6
Input for stand: 1/4-20 UNC
Power Supply: via. USB
Delivery contents

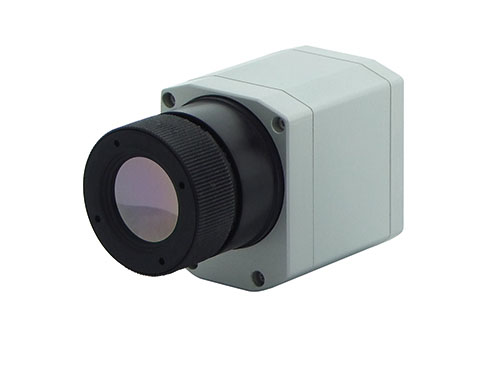

1 x infrared camera PCE-PI400 with objective
1 x USB cable (1m)
1 x table stand
1 x PIF cable with connected terminal block (1 m)
1 x software package PCE-PI Connect
1 x aluminum case
1 x instruction manual
