Specifications
Angle / geometry: 45° / 0° (for 45° measurement according to DIN 5033)
Range: RGB: 0 to 1023 for R, G and B ; HSL: 0 to 1.000 for H, S and L
Resolution: 1 for RGB measurement / 0.001 for HSL measurement
Repeatability: < 3 RGB, for a minimum of 1 measurement
Color spaces: RGB and HSL
Spectral range: 400 ... 700 nm
Light source: 2 white diodes
Surfaces: Non-luminous (absolute values); Luminous (relative values for comparison)
Aperture: 16 mm / ≈ 0.63" diameter
Interface: RS-232 port, data transfer requires optional software and cable
Power: 9 V battery
Dimensions (sensor): Approx. 45 x 92 x 160 mm / 1.7 x 3.6 x 6.2"
Weight: Approx. 600 g / 1.33 lb
Operating conditions: 0 ... 50 °C / 32 ... 122 °F, < 80 % RH
Dilivery Contents

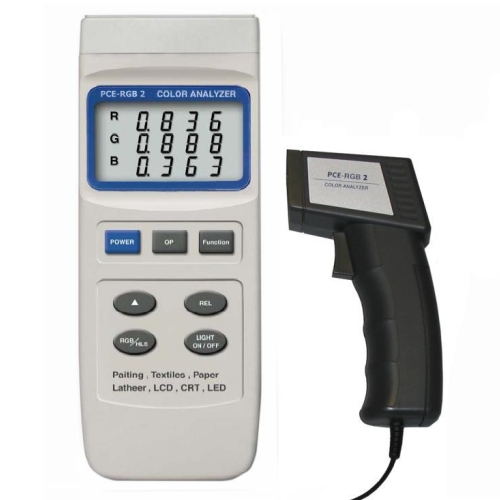

1 x PCE-RGB2 color meter
1 x color-measuring probe with 1.5 m / 4.9' long cable
1 x white calibration standard
1 x user manual
1 x carrying case
