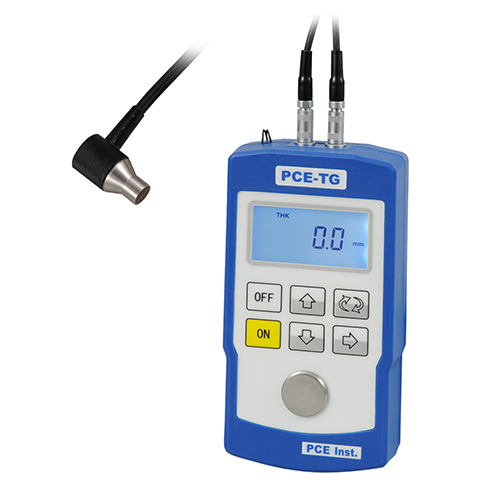

PCE TG 120 Ultrasonic Thickness Gauge (1~30 mm)

  • Manufacturer:PCE
    Model: TG 120
    Origin: China
    Guarantee: 12 Month
    • Request a Quotation Request a Quotation
  • Contact
    • Add to Cart
    • Buy
  • Contact us for the best price

    Myanmar: 09 266993007

    Email: info@emin.com.mm

Specification

Measurement range: 1 ... 30 mm / 0.04 ... 1.18 in

Measurable materials: Ferrous and non-ferrous metals, steel, plastic, glass, gold, and other homogeneous materials (without air pockets)

Frequency: 5 MHz

Resolution: 0.1 mm / 3.94 mil

Calibration: 3.0 mm / 0.1 in integrated steel block

Accuracy: ± (0.5% + 0.1 mm) at 0.8 ... 99.9 mm / 0.03 ... 3.9 in

± (1% + 1 mm) at 100 ... 300 mm / 3.9 ... 11.8 in

Sound velocity range: 1000 ... 9999 m/s (freely adjustable, depending on the material to be tested)

Sound velocity resolution: 1 m/s

Display: 4 digit LCD display

Surface temperature for probe: 0  ... 50°C / 32 ... 122°F

Measuring head diameter: 7 mm / 0.27 in

Measuring head shape: Square

Operating temperature range: 0 ... 40°C / 32 ... 104°F

Ambient humidity: 20 ... 90% r.H.

Battery status: Low power indicator

Power supply: 2 x 1. V AA batteries

Battery life: 250 h

Auto shutdown: For battery conservation (after about 3 minutes without operation)

Dimensions: 127 x 67 x 30 mm / 5 x 2.64 x 1.18 in (H x W x D)

Weight: 270 g / 9.5 oz incl. batteries



Delivery contents

1 x PCE-TG 120 Ultrasonic Thickness Gauge

1 x High-temperature contact transducer with 1 m (3.3 ft) cable

2 x Batteries

1 x Bottle of contact gel

1 x Carrying strap

1 x Carrying case

1 x User manual
