Specifications
Max. distance: 10 m / 32.8 ft between sensors
Accuracy: ±1 % + 0.01
Resolution: 0.001 mm
Display resolution: 0.01 or 0.001 mm
Sensor type: Position-sensitive photo diodes, approx. 10 x 10 mm / 0.4 x 0.4"
Laser type: Visible, red, 635 ... 670 nm, < 1 mW
Tilt (incline) resolution: 0.1 °
Interface: USB standard, Bluetooth optional
Memory: 2 GB data, internal
Operating temp. range: -10 ° ... +55 °C / +14 ... +131 °F
Power supply: NiMH battery (rechargeable)
Enclosure: Silicone protection
Ingress protection rating: IP65
Weight: 7.5 kg / 16.5 lbs
Dilivery Contents

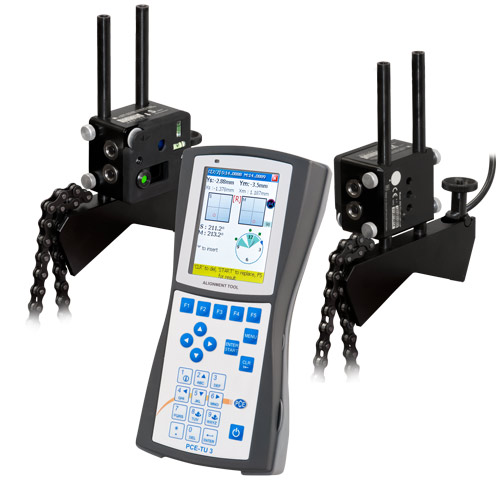

1 x PCE-TU 3 condition monitoring laser shaft alignment tool with battery
2 x laser sensors
2 x sensor mounting kits
1 x measuring tape
1 x battery charger
1 x connection cable
1 x PC-compatible software
1 x USB cable
1 x user manual
1 x carrying case
