Specifications
Communication type: ZigBee (with PCE-VMS 501)
ethernet, glass fibre cable, wireless (with server)
Frequency band: 2.4 GHz
Interfaces: Ethernet 2.0 IEEE802.3, TCP/IP, 10/100baseT
Data storage capacity: 128 MB
Power supply: 220 VAC/110 VAC or POE
Operating temperature: -20 °C ... +50 °C ; -4 °F ... 122 °F
Dimensions: 250 mm x 210 mm x 100 mm ; 9.8 in x 8.3 in x 3.9 in
Weight: 2400 g / 5.3 lbs
Technical Specifications about dispatcher
Dispatch range max. 100 m / 328 ft in industrial environment:
(130 m / 426.5 ft in free field)
Acceleration range: up to 300 m/s²
Frequency range:5 Hz ... 10 kHz
Resonance frequency: 16 kHz
Linearity: 1 %
Sensitivity for parameters that are not relevant for measurement ≤5 %
Electric insulation: <108 Ω
Load limit: 1000 g / 2.2 lbs
Measuring parameters: Acceleration, speed, temperature, offset
Dispatch interval: min. 1 minute per sensor
1 sensor at 1 box = 1 minute
3 sensors at one box= 3 minutes
A/D conversion: 24 Bit
Measurable range for wave form max. 512 kB
Frequency lines: 800, 1600, 3200, 6400
Measurement range for temperature: -20 ... +120 °C
-4 °F ... 248 °F
Screw thread: 6 mm
Material of enclosure: Bottom 316 L stainless steel,
top aluminum alloy
Power supply: 1 x 3,6 V lithium battery (ER 34335)
Battery lifetime: 1 year, depending on transfer interval
Dimensions: height: 80 mm / 3.1 in
diameter: 40 mm / 1.6 in
Weight: 217 g / 0.5 lbs
Protection class: IP 65
Operation temperature: -30 °C ... +70 °C / 86 °F ... 158 °F
(Surface temperature up to 125 °C / 257 °F)
Dilivery Contents

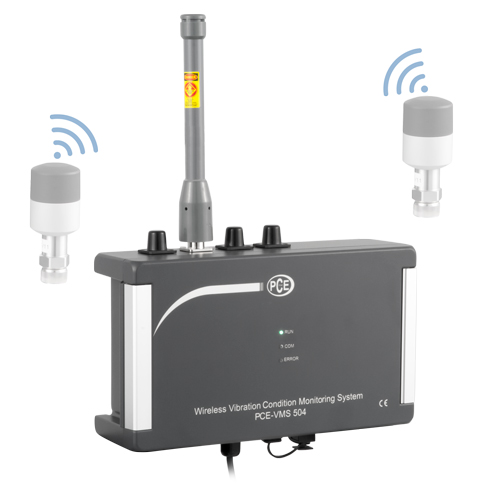

1 x Wireless Vibration Meter PCE-VMS 504 receiver base
1 x Monitoring-Software
1 x Adapter (1.5 m)
1 x Adapter cable (1.5 m)
4 x Screws to attach to wall
1 x Instruction manual
