Specification
Measurement range acceleration: 399.9 m/s² (Peak) / 1311 ft/s² (Peak)
Measurement range velocity: 399.9 mm/s (RMS) / 15.75 in/s (RMS)
Measurement range displacement: 3.9999 mm (Pk-Pk) or 158.0 mil (Pk-Pk) / 0.15 in (Pk-Pk) or 5.34 oz (Pk-Pk)
Measurement range revolutions: 50 ... 99.900 rpm (reading must be multiplied by 10)
Resolution: 0.1 m/s² / 0.1 yd/s²; 0.1 mm/s / 0.003 in/s; 1 µm / 3.3814e-14 oz ; 1 rpm
Accuracy: ± 5% of reading + 2 digits
Frequency range acceleration: 9 Hz ... 1 kHz (in 1 kHz mode) / 9 Hz ... 10 kHz (in 10 kHz mode)
Frequency range velocity: 10 Hz ... 1 kHz
Frequency range displacement: 10 Hz ... 1 kHz
Display: 4-digit LCD, last measured value is shown
Units: Metric or imperial
Interface: RS-232 port
Power supply: 3 x 1.5 V AAA LR03 batteries
Battery life: Up to 5 hours of continuous operation
Auto power off: After 5 minutes of inactivity (no key pressed)
Low-battery indication: < 2.1V
Operating temperature: -5 ... 55°C / 23 ... 131°F
Operating relative humidity: 95% RH, non-condensing
Enclosure: ABS plastic
Dimensions: 142 x 77 x 40 mm / 5.6 x 3.0 x 1.6 in
Weight: 0.23 kg / < 1 lb
Dilivery Contents

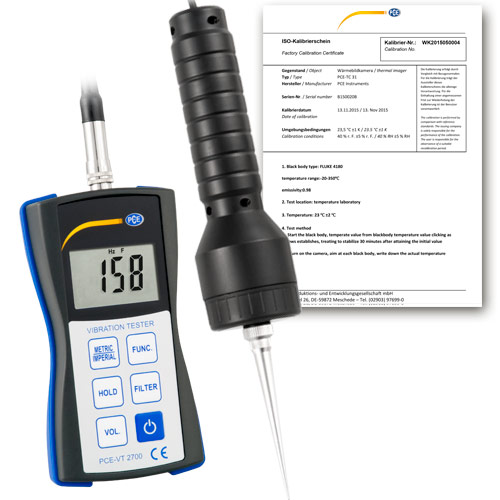

1 x PCE-VT 2700S handheld accelerometer
1 x 75 mm / 2.95" long pin probe
1 x Probe attachment with 1.5 m / 4.92 ft long cable
1 x Magnetic adapter plate
3 x Batteries
1 x Carrying case
1 x User manual
1 x Factory calibration certificate
