Specification
Frequency range: 10 Hz ... 1 KHz
Sampling time: Auto / manual, adjustable
Data storage: 1 GB ... 16 GB SD memory card (not included)
Data error: ≤ 0.1 % of all stored data
Data output: RS-232 interface / USB port
Sampling time (display): Approx. 1 second
Display: LCD (52 x 38 mm / 2.05 x 1.50"), green background light
Operating conditions: 0 °C ... +50 °C / +32 °F ... 122 °F; < 85% relative humidity (RH)
Power supply: Alkaline battery 1.5 V DC (UM3, AA) or equivalent (electric power adapter sold separately - see accessories)
Weight: 0.52 kg / 1.1 lbs
Dimensions: 203 x 76 x 38 mm / 8.0 x 3.0 x 1.5"
Acceleration
Measurement functions: TRMS, max hold, peak
Measurement range: 0.5 m/s² ... 199.9 m/s²; 0.05 g ... 20.39 g; 1.6 ft/s² ... 656 ft/s²
Resolution: 0.1 m/s²; 0.01 g; 0.3 ft/s²
Accuracy: ± 5% + 5 digits from measured value at 160 Hz, 80 Hz, 23 ± 5 °C
Calibration point: 50 m/s²; 164 ft/s² (160 Hz)
Speed
Measurement functions: TRMS, max hold, peak
Measurement range: 0.5 m/s ... 199.9 m/s; 50 cm/s ... 20000 cm/s; 20.0 in/s ... 7.9 in/s
Resolution: 0.1 m/s; 0.01 g; 0.3 ft/s
Accuracy: ± 5% + 5 digits from measured value at 160 Hz, 80 Hz, 23 ± 5 °C
Calibration point: 50 mm/s; 2.0 in/s (160 Hz)
Shift
Measurement functions: Peak to peak (p-p); max hold p-p
Measurement range: 1.999 mm; 0.08 in
Resolution: 0.001 mm; 0.00004 in
Accuracy: ± 5% + 5 digits from measured value at 160 Hz, 80 Hz, 23 ± 5° C
Calibration point: 0.141 mm; 0.006 in (160 Hz)
Dilivery Contents

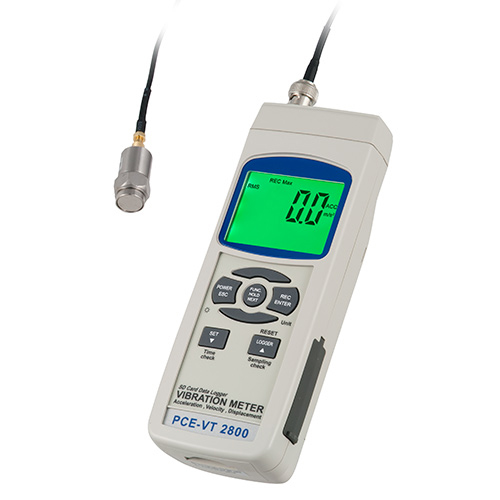

1 x PCE-VT 2800 Accelerometer
1 x external vibration sensor
1 x battery
1 x user manual
1 x carrying case
