Tube Radius: R600
Outer size (L*W*H): 750*1500*1950 (mm)
Inner size (L*W*H): 1300*1300*1450 (mm)
Diameter of turntable: Φ600mm
Bearing capacity of turntable: 50KG
Lifting height of turntable: 550-1000mm
Rotation speed of turntable: 1~5r/min
Tilt angle of
turntable: 00 or 150 horizontal direction
Turntable rotation method: Forward or forward and reverse
alternation
Test time: 0-999min
Weight: Approximate 280kg
Working Power: AC 220V/50Hz, 1KW (single phase)
IPX1-2 Tests
Drip board size: L600mm*W600mm
Aperture of nozzle: Φ0.4mm
Grid pattern: 20*20mm
Delivery rate: IPX1=1mm/min, IPX2=3mm/min
Lifting height of drip board: Fixed
IPX3-4 Tests
Radius of oscillating tube: R600
Delivery rate: IPX3=1.8L/min±5%, IPX4=2.6L/min±5%
Inside diameter of tube: 15mm
Aperture of nozzles: 0.4mm
Spacing of the nozzles: 50mm
1200 (IPX3), 3500
4s for 2*1200, 12s for 2*3600
Tube angle: 1200 (IPX3), 3500 (IPX4) or user-defined
Rotation speed of tube: 4s for 2*1200, 12s for 2*3600
flow control method: Manual control
Material of tube: SUS304 stainless steel

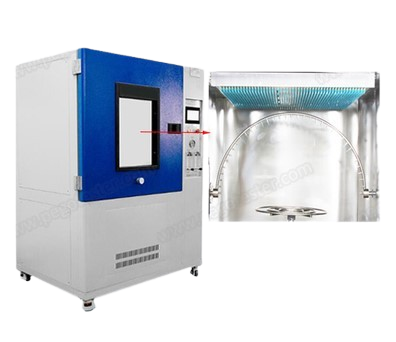

IPX1-4 waterproof test chamber combines the oscillating tube and drip box in one system, it meets the requirement of IEC60529 regarding the IP level IPX1, IPX2, IPX3 and IPX4. The comprehensive test chamber is consisted by oscillating tube, drip board, turntable, water tank, control units (touch screen+PLC), flowmeter and etc.. The oscillating tube, drip board, turntable and walls are made of SUS304 stainless steel. The test chamber is built-in a water tank, the water can be recycled. 4 casters are placed on the bottom of the chamber to make it can be moved easily.
